MEENYON - Customized Marine Gearboxes Manufacturer & Supplier for 40 Years

Marine Gearbox Supplier Products Wholesale - Meenyon

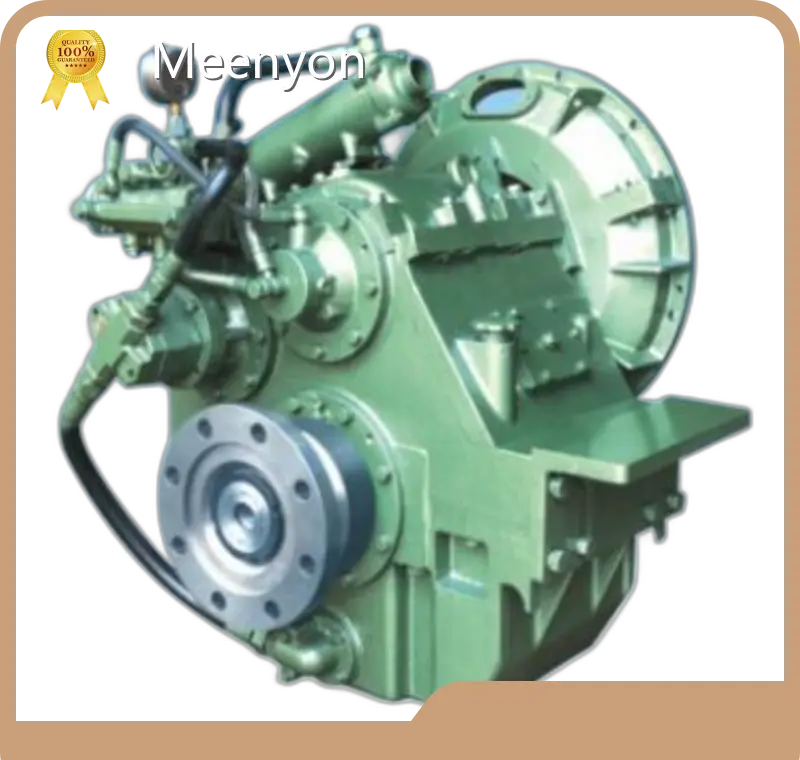

Product details of the marine gearbox supplier

Quick Detail

The design of Meenyon marine gearbox supplier always follows the latest trend and will never go out of style. Its particular structure design gives it a tremendous application potential in the market. Our strict quality management system greatly ensures the quality of this product. marine gearbox supplier of Meenyon can be used in various scenarios in different fields. By reason of advanced technology and experienced team, Meenyon has been growing rapidly since founded.

Product Introduction

Supported by advanced technology, Meenyon has a great breakthrough in the comprehensive competitiveness of marine gearbox supplier, as shown in the following aspects.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

Specification

Item	Description	Model 300
01	Engine speed: 750-20000 rpm; max 266 hp at 2000 rpm.
02	Ratio :1	1.87	2.04	2.54	3.00	3.35	3.53	4.10	4.47	4.61	4.94	5.44
03	Rate (hp/rpm)	0.345	0.345	0.345	0.326	0.296	0.296	0.296	0.296	0.247	0.197	0.168
04	Bell housing: #0, #1				Flywheel: SAE 18”,16”,14”
05	Overall L×W×H:786×930×864mm				Dry weight: 740kg
06	Centre distance: 264mm ;
07	Recommend engine:KTA19-M600, TBD234V12…
08	Rated propeller thrust: 50kN

Dimension

Model 300
C	264mm
S	270mm
F	648mm
L	435mm
R	435mm

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.

Company Advantages

Meenyon, located in is a enterprise. The main business is to produce Marine Gearbox,Marine Gearbox Parts,Marine Power System Solution,Marine Hydraulic Clutch. Meenyon worships the enterprise spirit, which is to be practical, hard-working and responsible. Our business is focused on honesty, pragmatism and mutual benefit. We provide high-quality products and services for numerous consumers depending on advanced technology and comprehensive management. We have a group of senior teams with strong research and development capabilities, and have introduced various advanced modern production equipment, providing a strong guarantee for the company's development. Meenyon has many years of industry experience and strong production strength. According to different needs of customers, we are able to provide customers with excellent and efficient one-stop solutions.
With years of experience in production, we guarantee our product quality so you can purchase them with confidence. Feel free to contact us!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
