Marine Gearbox Supplier Light and High Speed Gearbox Wholesale - Meenyon

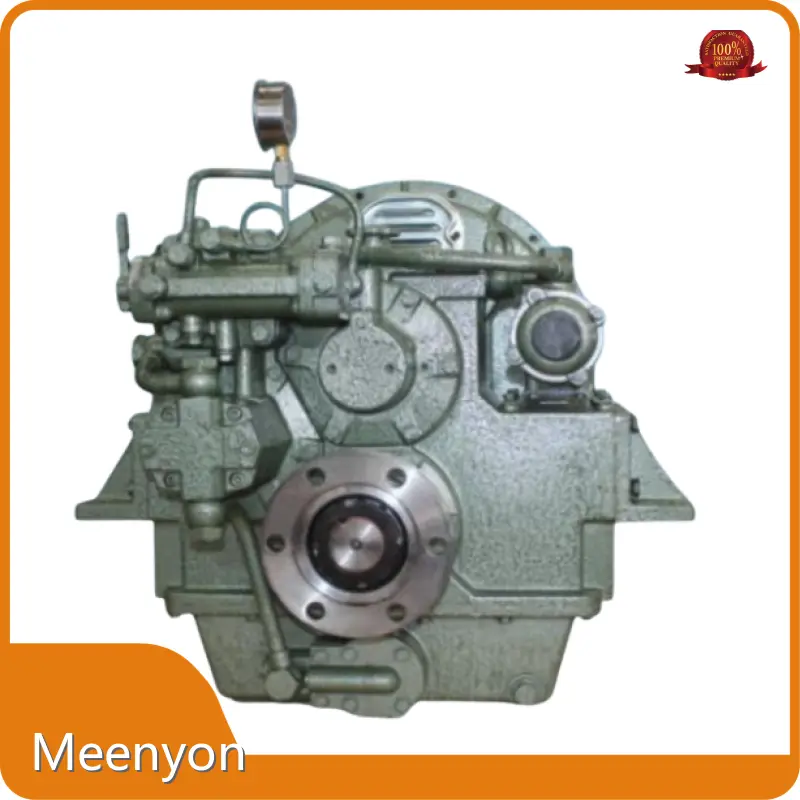

Product details of the marine gearbox supplier
Product Introduction
Meenyon marine gearbox supplier delivers professional design concepts and advanced production methods. Excellent performance and long service life make the product competitive. Meenyon is powerful enough to provide professional marine gearbox supplier service.
Features
● Durable structure of driving gear bearing
● Tapered roller thrust bearing for output shaft thrust
● Hydraulic clutches of forward and reverse
● Quality Control System ISO/IATF16949:2016
● Quiet operation with precise gearing.
● Compact design
● Go Home function (emergency bolt application)
OPTIONS
● PTO
● Mechanical or electrical remote control
Specification
|
Item |
Description |
|
Model Q401 |
||||||||
|
01 |
|
Engine speed: 1000-2300 rpm; max 1012 hp at 2300 rpm |
|||||||||
|
02 |
Reduction Ratio :1 |
1.00 |
1.12 |
1.25 |
1.41 |
1.50 |
1.76 |
2.04 |
2.50 |
||
|
03 |
Rate (hp/rpm) |
0.440 |
0.440 |
0.440 |
0.440 |
0.440 |
0.440 |
0.440 |
0.39 |
||
|
04 |
Bell housing: SAE #0, #1 |
Flywheel: 14”, 16”,18” |
|||||||||
|
05 |
Overall L×W×H: 640×900×800 mm |
Dry weight: 480 kg |
|||||||||
|
06 |
|
Centre distance: 220 mm |
|||||||||
|
07 |
|
Recommend engine: KTA38-M800, CAT3412TA, TBD604BL6 … |
|||||||||
|
08 |
|
Rated propeller thrust: 50 KN |
|||||||||
Dimension
|
Model Q401 |
|
|
C |
220 mm |
|
S |
|
|
F |
|
|
L |
|
|
R |
|
faq
Company Feature
• Meenyon has a team of professional and technical personnel with high production efficiency.
• With the help of e-commerce platform and multi-channel marketing resources, we have exported our products to both domestic and overseas markets, and have increased our market share. Our sales volume is far higher than other companies in the same industry.
• Meenyon enjoys the superior geographical position with traffic convenience.
If you are in need for products of reliable quality and affordable price, please contact us at any time!
