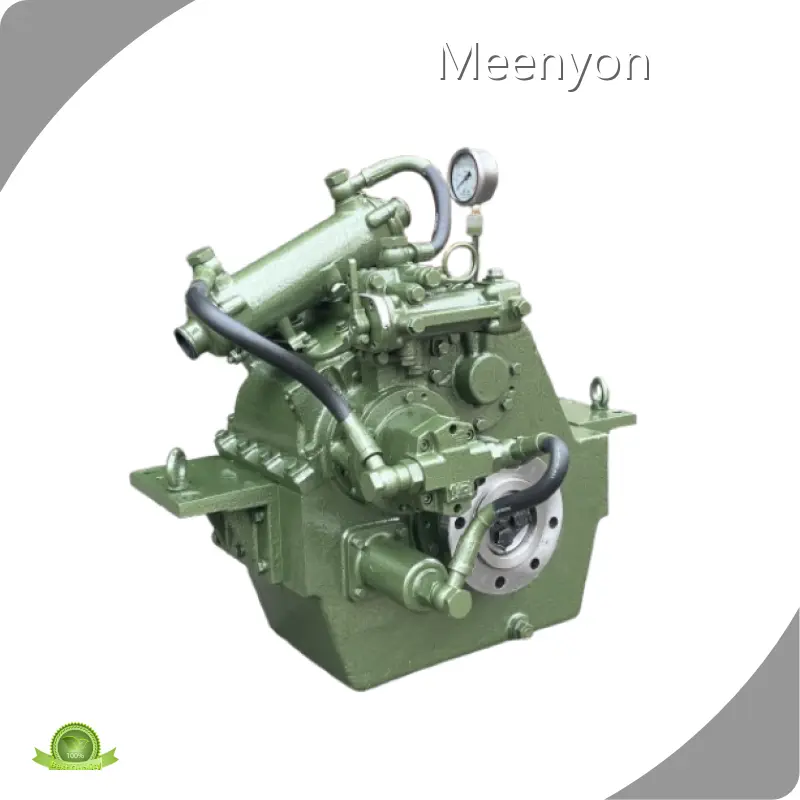

Product details of the marine gearbox

Product Introduction

Meenyon marine gearbox is finely processed by using well-selected materials and the advanced production techniques. Checking each detail of the product is a necessary step in Meenyon. Meenyon has experienced management and technical team.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● 5° down angle on output shaft

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

OPTIONS

● Mechanical or electrical remote control

Specification

Item	Description	Model A1401 5°
01	Engine speed: 1600-2100 rpm; max 2944 hp at 2100 rpm
02	Reduction Ratio :1	1.52	2.03	2.53	2.93
03	Rate (hp/rpm)	1.402	1.402	1.265	1.197
04	Bell housing: SAE #0, #1, Special				Flywheel: 14”, 16”, 18” Special
05	Overall L×W×H: 756×1300×1285 mm				Dry weight: 1400 kg
06	Centre distance: 340 mm; 5° down angle on output shaft
07	Recommend engine
08	Rated propeller thrust: 110 kN

Dimension

Model A1401 5°
C	340 mm
S
F
L
R
A	5°

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.
