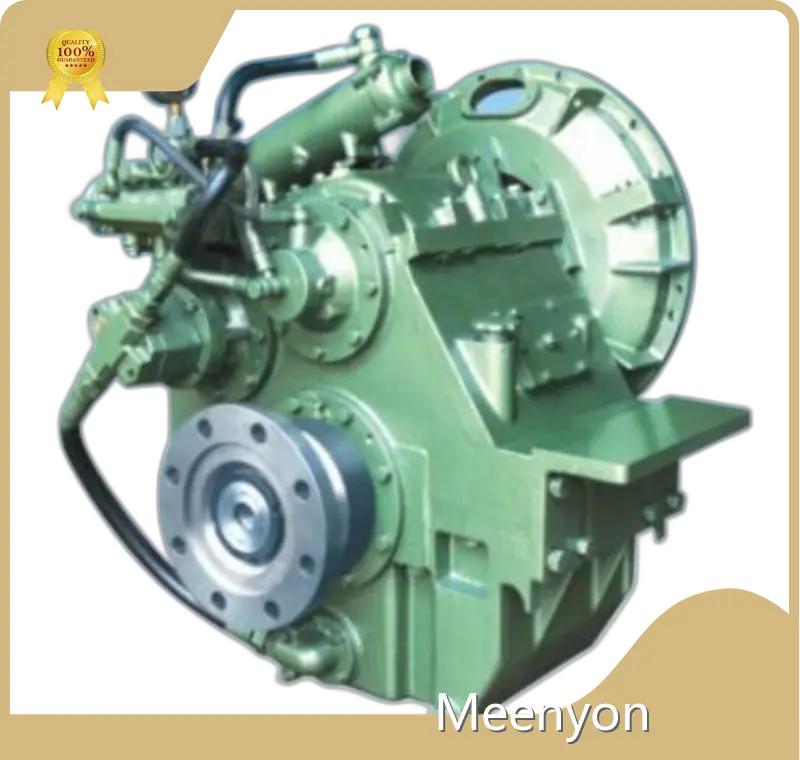

Marine Gearbox Marine Transmissions Dealer
Product details of the marine transmissions
Product Introduction
marine transmissions is specially designed to gain certain function. The product, meeting with the strict quality standards, has a long service life. Professional and considerate customer service is very important to Meenyon.
Features
● Durable structure of driving gear bearing
● Tapered roller thrust bearing for output shaft thrust
● Hydraulic clutches of forward and reverse
● Quality Control System ISO/IATF16949:2016
● Quiet operation with precise gearing.
● Compact design
● Go Home function (emergency bolt application)
Specification
|
Item |
Description |
|
Model J300 |
|||
|
01 |
Engine speed: 750-2500 rpm; max 938 hp at 2500 rpm |
|||||
|
02 |
Ratio :1 |
0.04 | 2.54 | 3.00 | 3.47 | 3.95 |
|
03 |
Rate (hp/rpm) |
0.375 | 0.375 | 0.375 | 0.375 | 0.344 |
|
04 |
Bell housing: #0, #1 |
Flywheel: SAE 18”,16”,14” |
||||
|
05 |
Overall L×W×H: 786×930×880 mm |
Dry weight: 740kg |
||||
|
06 |
Centre distance: 264mm ; |
|||||
|
07 |
Recommend engine:KTA19-M600, CAT3412T, TBD234V12… |
|||||
|
08 |
Rated propeller thrust: 60kN |
|||||
Dimension
|
Model J300 |
|
|
C |
264mm |
|
S |
270mm |
|
F |
648mm |
|
L |
435mm |
|
R |
435mm |
