Product details of the marine gearbox manufacturers
Quick Overview
marine gearbox manufacturers has reliable quality, refined and beautiful appearance and long service life. Multiple times of testing are conducted to ensure its quality. Meenyon has established a sound quality control system to make sure the quality of the product.
Product Introduction
Our marine gearbox manufacturers has the following advantages over similar products.
| Item |
Description |
Parameters |
| 01 |
Tooth profile accuracy |
Grade 6 or higher ISO1328 or AGMA standard |
| 02 |
Tooth direction accuracy |
≦0.01mm |
| 03 |
Pitch accuracy |
±0.005mm |
| 04 |
Surface roughness |
Ra≤0.8μm |
| 05 |
Module |
2-14 mm |
| 06 |
Number of Teeth |
as per gearbox ratio and design |
| 07 |
Pressure Angle |
20° |

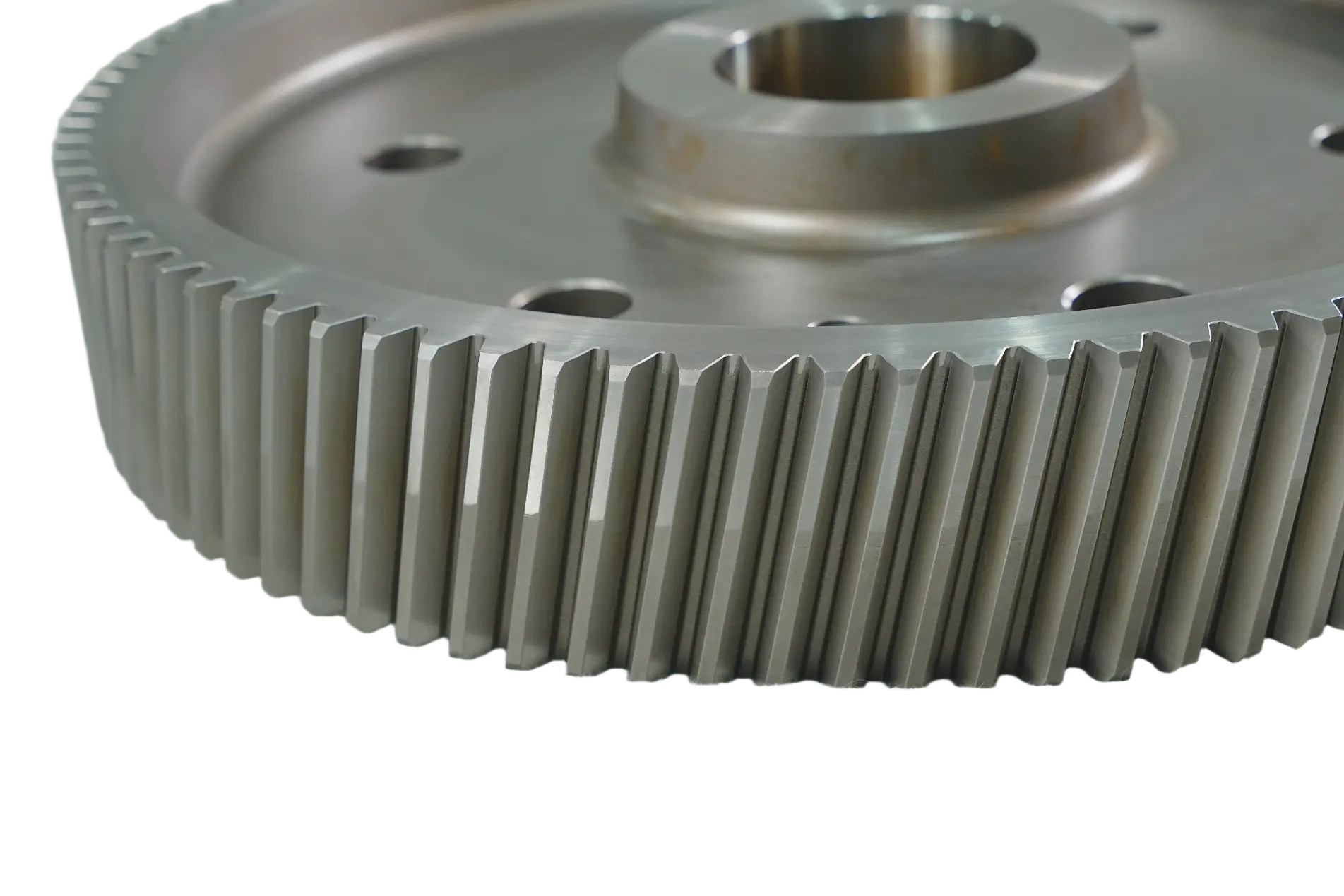

The DRIVEN GEAR is usually made of high-strength alloy steel as follows:
-20CrMnTi : With good hardenability and toughness, suitable for bearing high loads and shocks.
-18Cr2Ni4WA: High strength and toughness, suitable for heavy duty and high-speed conditions.
-42CrMo: High strength, good toughness and wear resistance, suitable for heavy loads and impact loads.
- Carburizing quenching: After carburizing the surface, quenching improves the surface hardness and wear resistance, while maintaining the toughness of the core. The depth of the carburizing layer is usually 0.8-1.2mm, and the surface hardness can reach HRC58-62 with core hardness HRC30-40.
-Tempering: tempering at low temperature after quenching to eliminate internal stress, improve toughness and prevent brittle fracture.
-Nitriding treatment: Some gears use nitriding treatment to further improve surface hardness and wear resistance, suitable for high-speed and heavy-duty conditions.
-Forging: Using precision forging to ensure material density and fiber flow, improve mechanical properties.
-Roughing: turning, milling and other preliminary forming, leaving a margin for finishing.
- Finishing: Use high-precision CNC machine tools for tooth profile machining to ensure tooth profile accuracy and surface finish.
-Gear grinding: Further improve tooth profile accuracy and surface quality through CNC grinding process to ensure smooth meshing and low noise.
-Testing: Using coordinate measuring machine, gear testing center and other equipment to ensure that the dimensional accuracy and tooth profile error meet the requirements.
-Phosphating: Improve surface corrosion resistance and lubrication.
-Plating treatment: Some gears are plated with chromium or nickel to further improve corrosion and wear resistance.
1
What material is usually used for marine gearbox driving gear?
Commonly used materials include high-strength alloy steels such as 20CrMnTi, 18Cr2Ni4WA and 42CrMo. These materials have high strength, good toughness and wear resistance, and are suitable to withstand high loads and impacts.
2
What are the heat treatment processes of the driving gear?
The main heat treatment processes include:
- Carburizing hardening: improve the surface hardness and wear resistance, the surface hardness can reach HRC58-62 with core hardness HRC30-40.
- Tempering: eliminate internal stress and improve toughness.
- Nitriding treatment: further improve the surface hardness and wear resistance, suitable for high-speed, heavy duty conditions.
3
What steps does the machining process of the driving gear include?
The processing technology mainly includes:
- Forging: Ensure material density and fiber flow.
- Roughing: preliminary forming, leaving a margin for finishing.
- Finishing: Using high precision CNC machine tools for tooth shape machining.
- Grinding teeth: improve tooth shape accuracy and surface quality.
- Inspection: Use coordinate measuring machine and gear inspection center to ensure accuracy.
4
What is the accuracy requirement of the driving gear?
Accuracy requirements include:
-Tooth profile accuracy: According to ISO1328 or AGMA standard, usually DIN grade 6 or higher.
-Alignment accuracy: The error is controlled within 0.01mm.
-Pitch accuracy: The error is controlled within ±0.005mm.
-Surface roughness: Ra≤0.8μm
5
What are the main dimensions of the driving gear?
The main size parameters include:
-Module: Usually 2-14mm.
-Number of Teeth: Designed according to gearbox ratio.
-Pressure Angle: Usually 20°.
-Tooth Width (Face Width): common 50-150mm.
-Outer Diameter: calculated according to the modulus and number of teeth.
Bore Diameter: Fit with shaft, usually 50-200mm.
6
What are the geometric tolerance requirements for the drive gear?
Geometric tolerances include:
-Concentricity: Control within 0.01mm.
-Parallelism: Control within 0.02mm.
-verticality: Control within 0.01mm.
7
How to check the accuracy and quality of the driving gear?
Detection methods include:
-Coordinate measurement machine: Detect geometric dimensions and form and position tolerances.
-Gear detection center: detection of tooth shape, tooth direction and tooth pitch accuracy.
-Hardness test: Test surface and core hardness.
-Surface roughness detection: Ensure that the tooth surface roughness meets the requirements.
8
What is the quality control standard for driving gear?
Quality control follows international standards (such as ISO, AGMA) or industry specifications to ensure that the dimensional accuracy, hardness, surface quality and mechanical properties of the gear meet the design requirements.
9
What are the application scenarios of Marine gearbox driving gear?
The driving gear is widely used in Marine propulsion systems, lifting equipment, construction machinery and other occasions requiring high load and high reliability.
10
How to maintain the drive gear to extend its service life?
Maintenance measures include:
-Check gear meshing and surface wear regularly.
-Keep the lubrication system working properly and use suitable lubricating oil.
-Avoid overload operation and ensure that the gear works within the rated load.
11
What is the design life of the driving gear?
The design life is usually 10-20 years, depending on working conditions, load and maintenance.
12
How to choose the right driving gear supplier?
The following factors should be considered when selecting a supplier:
-Technical competence and experience of the supplier.
- Quality control system and certification (e.g. ISO/IATF16949, ISO9001).
- After-sales service and technical support capabilities.
