Marine Gearbox Manufacturers by Meenyon

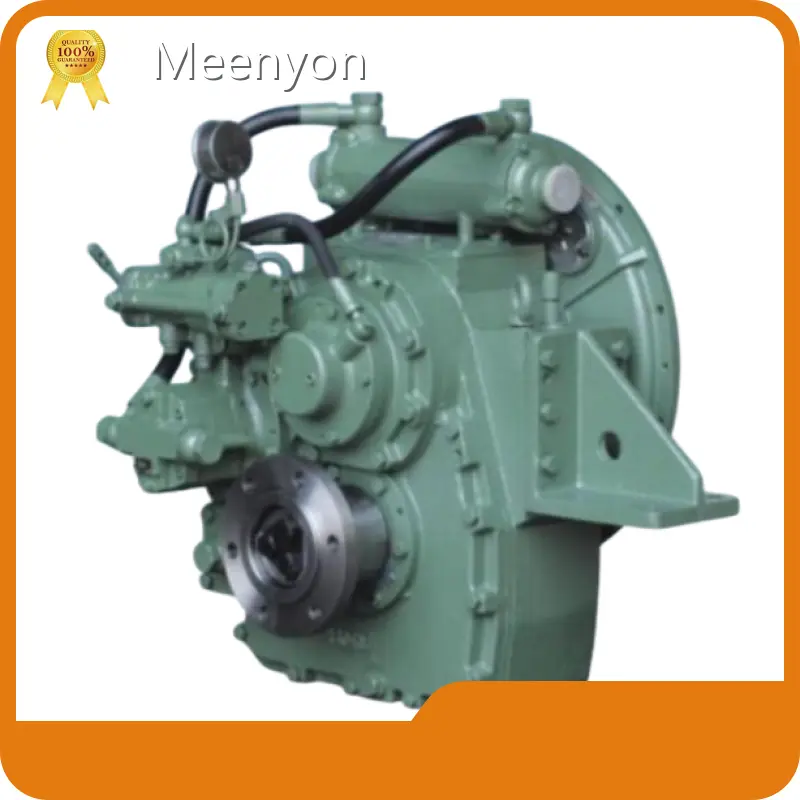

Product details of the marine gearbox manufacturers

Product Introduction

With the help of experienced craftsman, Meenyon marine gearbox manufacturers is produced following the highest production standards. With superior craftsmanship, Meenyon ensures the quality of this product. The product is very popular in the industry especially for its unique features.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

OPTIONS

● Mechanical, pneumatic or electrical remote control

Specification

Item	Description	Model 120C
01	Engine speed: 1000-2500 rpm; max 335 hp at 2500 rpm
02	Ratio :1	1.48	1.61	1.94	2.45	2.96	3.35
03	Rate (hp/rpm)	0.134	0.134	0.134	0.134	0.121	0.107
04	Bell housing: #1, #2, #3				Flywheel: 14”, 11.5”
05	Overall L×W×H: 432×440×650 mm				Dry weight: 225 kg
06	Centre distance: 180 mm
07	Recommend engine: NT-855-M240; CAT3280TA
08	Rated propeller thrust: 25 kN

Dimension

Model 120C
C	180 mm
S
F
L
R

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.

Company Advantage

• After years of development, Meenyon now has had modern production facilities and perfect management system. Moreover, we have mastered scientific management means and excellent production technology.
• Our company is provided with natural resources, superior geographical condition, developed information and convenient transportation.
• At present, Meenyon has an excellent work team who is pragmatic, innovative, strict and diligent. One glorious chapter after another is written based on our team members' wisdom and ability.
As a powerful manufacturer, Meenyon supplies Marine Gearbox,Marine Gearbox Parts,Marine Power System Solution,Marine Hydraulic Clutch in various styles, models and functions in the long term. Please contact us to know more details.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
