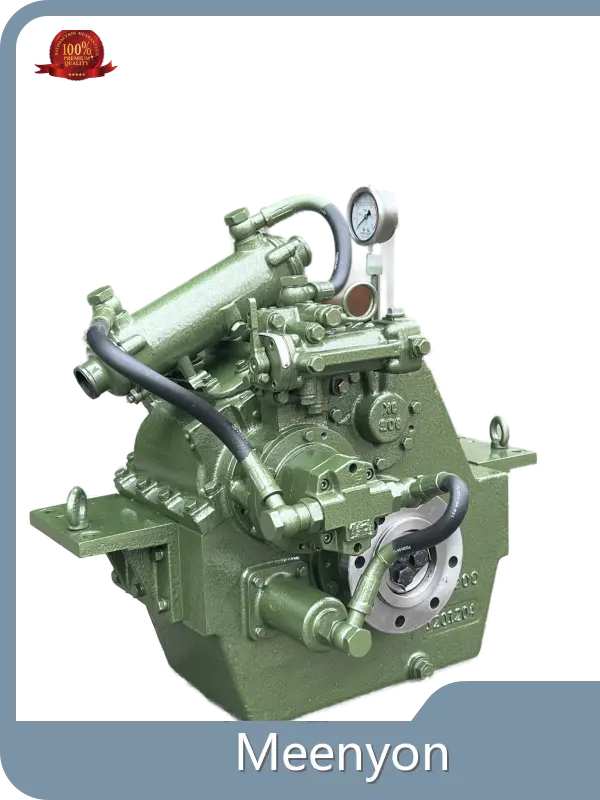

Marine Gearbox High Speed Gearbox Manufacturers Factory

Product details of the high speed gearbox manufacturers

Product Overview

Our high speed gearbox manufacturers can transform thousands of different styles to complete your design and creativity. This product is the first choice of our customers, with long service life and practicality. The product is widely used for various purposes and has a great market potential.

Product Description

Compared with other products in the same category, high speed gearbox manufacturers produced by Meenyon has the following advantages.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● 7° down angle on output shaft

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

Specification

Item	Description	Model A300 10°
01	Engine speed: 1000-26000 rpm; max 385 hp at 2600 rpm.
02	Reduction Ratio :1	1.01	1.28	1.50	2.03	2.52	2.95
03	Rate (hp/rpm)	0.148	0.148	0.148	0.148	0.148	0.114
04	Bell housing: SAE #1,#2,				Flywheel: SAE 14”, 11.5”
05	Overall L×W×H: 530×660×616mm				Dry weight: 200 kg
06	Centre distance: 185mm ; 10° down angle on output shaft
07	Recommend engine:NT-855-M240, MWM D234 V8 …
08	Rated propeller thrust: 25 kN

Dimension

Model A300 10°
C	185mm
S
F
L
R
A	10°

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.
