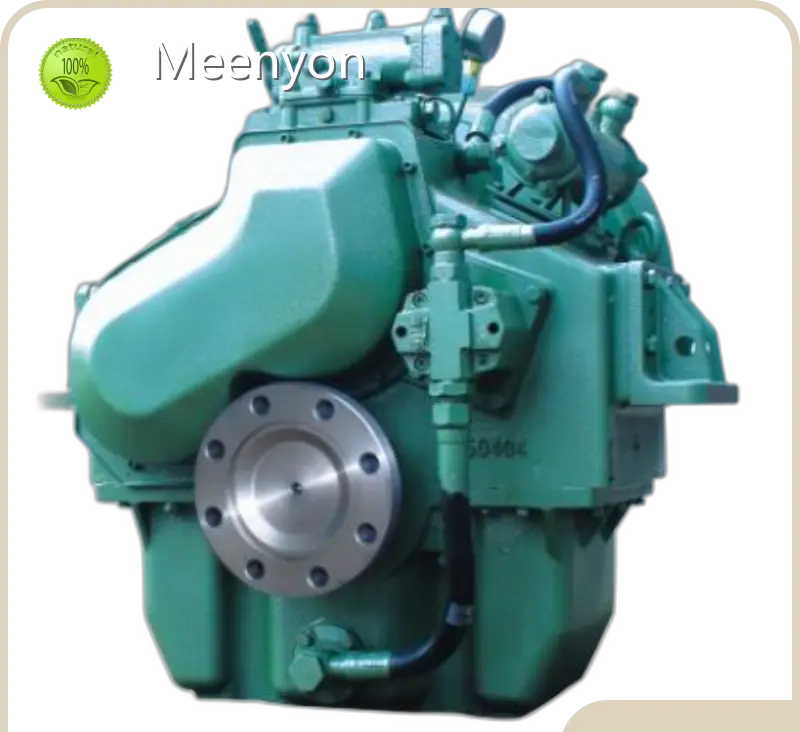

Marine Gearbox for Sale

Product details of the marine gearbox

Quick Overview

In order to be more competitive, our marine gearbox are all designed to be unique. This product has passed a series of international quality assurance systems and safety certifications. Meenyon's marine gearbox can be widely used in various fields. Meenyon will strive to satisfy customers, the general public and the people in the countries (regions) where the business is located.

Product Information

Compared with similar products, our marine gearbox's outstanding advantages are as follows.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

Options

● PTO

● Mechanical, pneumatic or electrical remote control

Specification

Item	Description	Model 135A
01	Engine speed: 750-20000 rpm; max 266.0 hp at 2000 rpm.
02	Ratio :1	2.03	2.59	3.04	3.62	4.11	4.65	5.06	5.47	5.81
03	Rate (hp/rpm)	0.133	0.133	0.133	0.133	0.133	0.125	0.118	0.103	0.094
04	Bell housing: #1, #2				Flywheel: SAE 14”,11.5”
05	Overall L×W×H:578×792×830mm				Dry weight: 470kg
06	Centre distance: 225mm ;
07	Recommend engine:NT-855-M240; CAT3406 …
08	Rated propeller thrust: 29kN

Dimension

Model 135A
C	225mm
S	246mm
F	604mm
L	320mm
R	320mm

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.

Company Advantages

Meenyon (Meenyon) is a comprehensive enterprise. We are engaged in the production, processing, sales, transportation and distribution of Marine Gearbox,Marine Gearbox Parts,Marine Power System Solution,Marine Hydraulic Clutch. Meenyon runs a comprehensive supply system and after-sales service system. We are committed to providing excellent service for the majority of customers. You are always welcomed for inquiry.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
