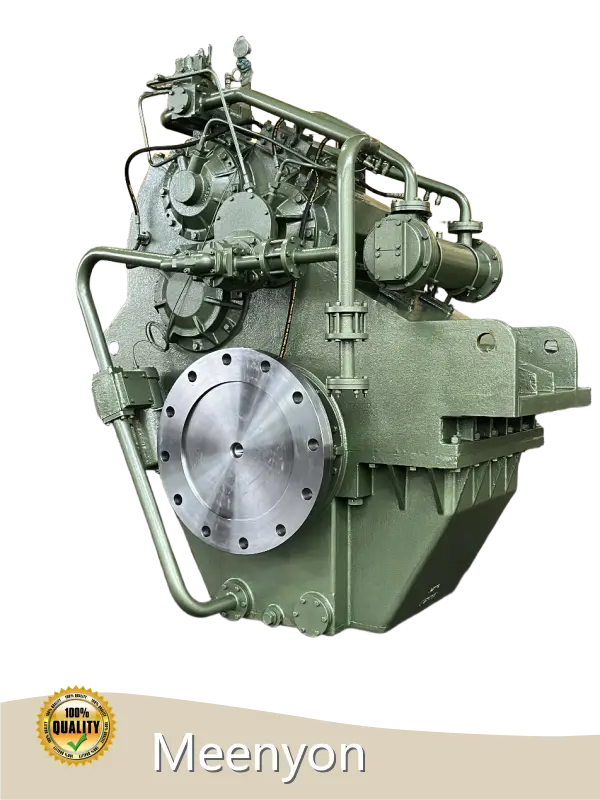

Product details of the marine gearbox for sale

Product Information

The design of Meenyon marine gearbox for sale is obviously more superior than similar types of products in the market. Our pursuit of quality makes this product better than the ordinary products on the market. Meenyon builds professional QC team so as to well guarantee quality of marine gearbox for sale.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

Options

● Mechanical, pneumatic or electrical remote control

Specification

Item	Description			Model T27000
01	Engine speed: 500-1400 rpm; max 3849 hp at 1400 rpm
02	Reduction Ratio :1	4.92	5.43		6.16	6.58	7.03	7.53	8.01	8.54	9.12	9.42	10.05	10.68	11.54
03	Rate (hp/rpm)	2.749	2.749		2.749	2.749	2.749	2.749	2.749	2.575	2.454	2.360	2.065	2.100	2.937
04	Bell housing: NO					Flywheel: main engine
05	Overall L×W×H: 1900×2000×1970 mm					Dry weight: 7200 kg
06	Centre distance: 680 mm
07	Recommend engine:
08	Rated propeller thrust: 340 KN

Dimension

Model T2700
C	680 mm
S	mm
F	mm
L	mm
R	mm

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.
