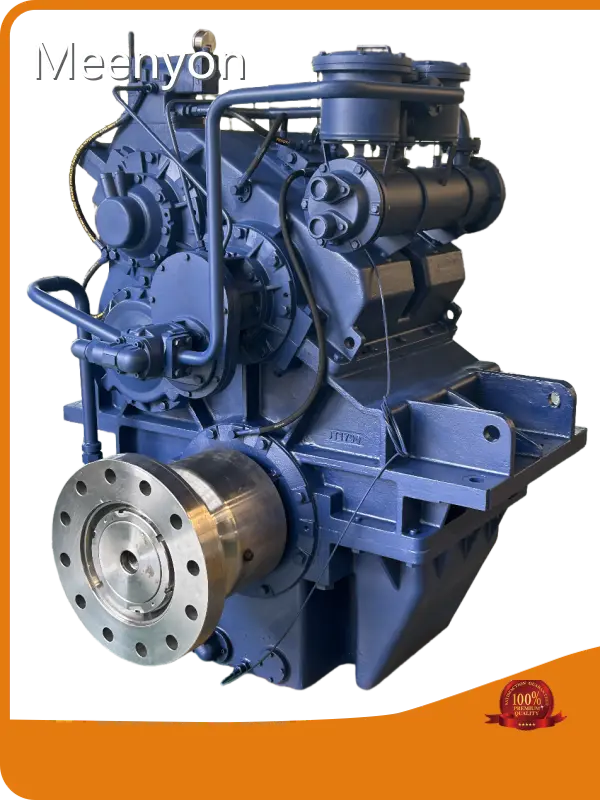

Product details of the marine gearbox for sale

Quick Detail

Raised production technique: the production technique of Meenyon marine gearbox for sale is updated based on our rich production experience. It has evolved greatly over the past years. It has great performance superiority compared with other products. The marine gearbox for sale produced by Meenyon is very popular in the market and is widely used in industry. Meenyon will try hard to synchronize with the marine gearbox for sale market.

Product Information

The marine gearbox for sale produced by Meenyon are of superior quality, and the specific details are as follows.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

Options

● Mechanical, pneumatic or electrical remote control

Specification

Item	Description			Model 2000
01	Engine speed: 500-1500 rpm; max 2975 hp at 1500 rpm
02	Reduction Ratio :1	1.97	2.28		2.52	3.13	3.52	3.91	4.40	4.50
03	Rate (hp/rpm)	1.985	1.985		1.985	1.985	1.985	1.985	1.649	1.760
04	Bell housing: NO						Flywheel: main engine
05	Overall L×W×H: 1600×1620×1645 mm						Dry weight: 4200 kg
06	Centre distance: 560 mm
07	Recommend engine:
08	Rated propeller thrust: 220 KN

Dimension

Model 2000
C	560 mm
S	mm
F	mm
L	mm
R	mm

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.

Company Introduction

With a vast amount of experience in designing and manufacturing marine gearbox for sale, Meenyon has been one of the most competitive manufacturers and suppliers. Being furnished with mature production technology, our marine gearbox for sale is of great quality. To achieve the great goal of being the leading marine gearbox for sale production brand, Meenyon has paid more attention to providing the most considerate service. Inquiry!
If you are interested, please contact customer service staff for consultation!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
