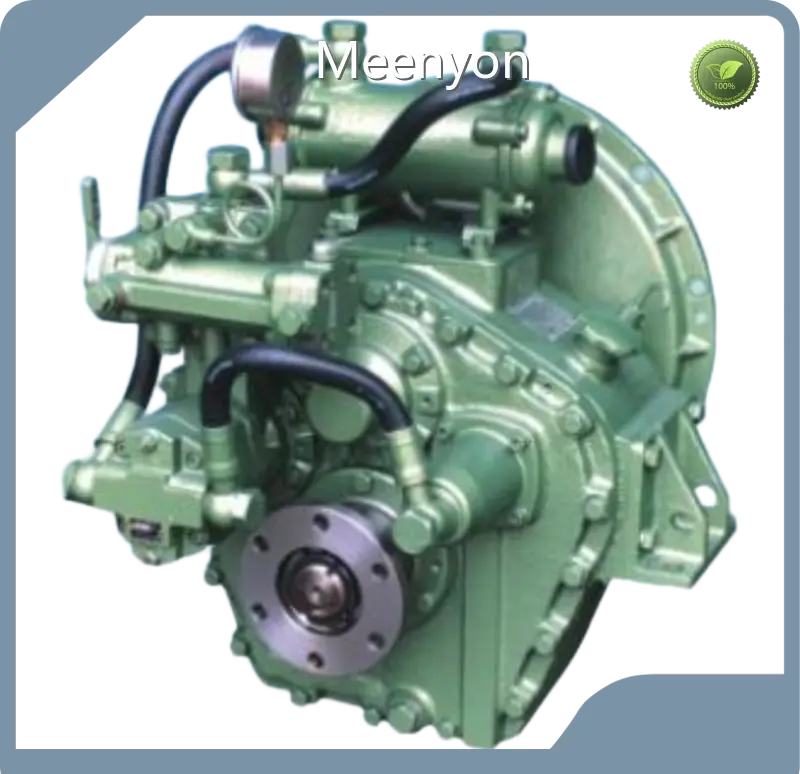

Product details of the marine gearbox

Product Introduction

The marine gearbox designed by Meenyon professional designers are very competitive in this industry. The product has the quality that meets and even exceeds the industry standards as well as specifications. That Meenyon concentrates on the service quality turns out to be effective.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

OPTIONS

● PTO

● Mechanical, pneumatic or electrical remote control

Specification

Item	Description	Model MB270A
01	Engine speed: 1000-2500 rpm; max 493.0 hp at 2500 rpm
02	Ratio :1	3.00	4.05	4.53	5.12	5.50	5.95	6.39	6.82
03	Rate (hp/rpm)	0.197	0.197	0.197	0.197	0.180	0.148	0.118	0.118
04	Bell housing: #0,#1, #2				Flywheel: 11.5”, 14”, 16”, 18”
05	Overall L×W×H: 594×810×868 mm				Dry weight: 675kg
06	Centre distance: 270 mm;
07	Recommend engine:NT-855-M400, CAT3406TA
08	Rated propeller thrust: 39.2 kN

Dimension

Model MB270A
C	270 mm
S	320 mm
F	574 mm
L	335 mm
R	335 mm

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.
