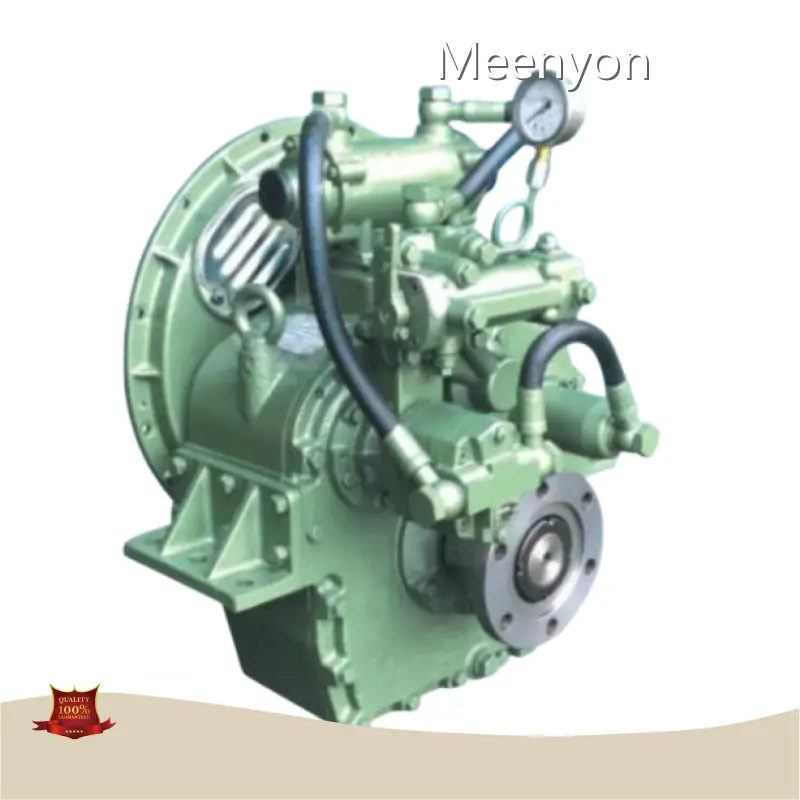

Marine Gearbox by Meenyon-1
Product details of the marine gearbox
Quick Overview
The packing for marine gearbox is simple but beautiful. The product reaches the advanced quality level of the industry. Our marine gearbox can be used in a variety of industries to play a certain role. The product, used by an increasing number of people, has an extensive application prospect.
Product Description
The marine gearbox of Meenyon is of excellent quality, and it is more remarkable to zoom in on the details.
Features
● Durable structure of driving gear bearing
● Tapered roller thrust bearing for output shaft thrust
● Hydraulic clutches of forward and reverse
● Quality Control System ISO/IATF16949:2016
● Quiet operation with precise gearing.
● Compact design
● Go Home function (emergency bolt application)
OPTIONS
● Mechanical or electrical remote control
Specification
|
Item |
Description |
|
Model D300A |
|||||||
|
01 |
Engine speed: 1000-2500 rpm; max 863 hp at 2500 rpm |
|||||||||
|
02 |
Reduction Ratio :1 |
4.00 | 4.48 | 5.05 | 5.52 | 5.90 | 6.56 |
7.06 |
7.36 |
|
|
03 |
Rate (hp/rpm) |
0.345 | 0.326 | 0.296 | 0.247 | 0.247 | 0.247 |
0.197 |
0.168 |
|
|
04 |
Bell housing: #0, #1 |
Flywheel: 14”, 16”,18” |
||||||||
|
05 |
Overall L×W×H: 786×1010×1041 mm |
Dry weight: 880 kg |
||||||||
|
06 |
Centre distance: 355 mm |
|||||||||
|
07 |
Recommend engine: KTA19-M600; TBD234V12 … |
|||||||||
|
08 |
Rated propeller thrust: 60 KN |
|||||||||
Dimension
|
Model D300A |
|
|
C |
355 mm |
|
S |
355 mm |
|
F |
648 mm |
|
L |
475 mm |
|
R |
475 mm |
