Features
● Durable structure of driving gear bearing
● Tapered roller thrust bearing for output shaft thrust
● Hydraulic clutches of forward and reverse
● Quality Control System ISO/IATF16949:2016
● Quiet operation with precise gearing.
● Compact design
● Go Home function (emergency bolt application)
OPTIONS
● PTO
● Mechanical, pneumatic or electrical remote control
Specification
|
Item |
Description |

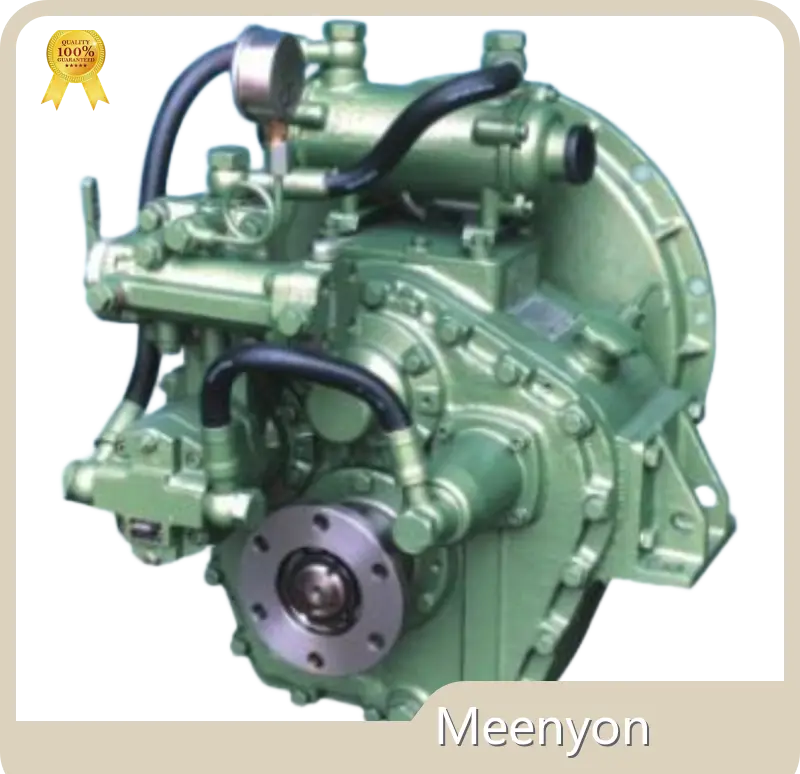

Model MB270A |
|
||||||
|
01 |
Engine speed: 1000-2500 rpm; max 493.0 hp at 2500 rpm |
|
|||||||
|
02 |
Ratio :1 |
3.00 | 4.05 | 4.53 | 5.12 | 5.50 | 5.95 | 6.39 | 6.82 |
|
03 |
Rate (hp/rpm) |
0.197 | 0.197 | 0.197 | 0.197 | 0.180 | 0.148 | 0.118 | 0.118 |
|
04 |
Bell housing: #0,#1, #2 |
Flywheel: 11.5”, 14”, 16”, 18” |
|
||||||
|
05 |
Overall L×W×H: 594×810×868 mm |
Dry weight: 675kg |
|
||||||
|
06 |
Centre distance: 270 mm; |
|
|||||||
|
07 |
Recommend engine:NT-855-M400, CAT3406TA |
|
|||||||
|
08 |
Rated propeller thrust: 39.2 kN |
|
|||||||
Dimension
|
Model MB270A |
|
|
C |
270 mm |
|
S |
320 mm |
|
F |
574 mm |
|
L |
335 mm |
|
R |
335 mm |
