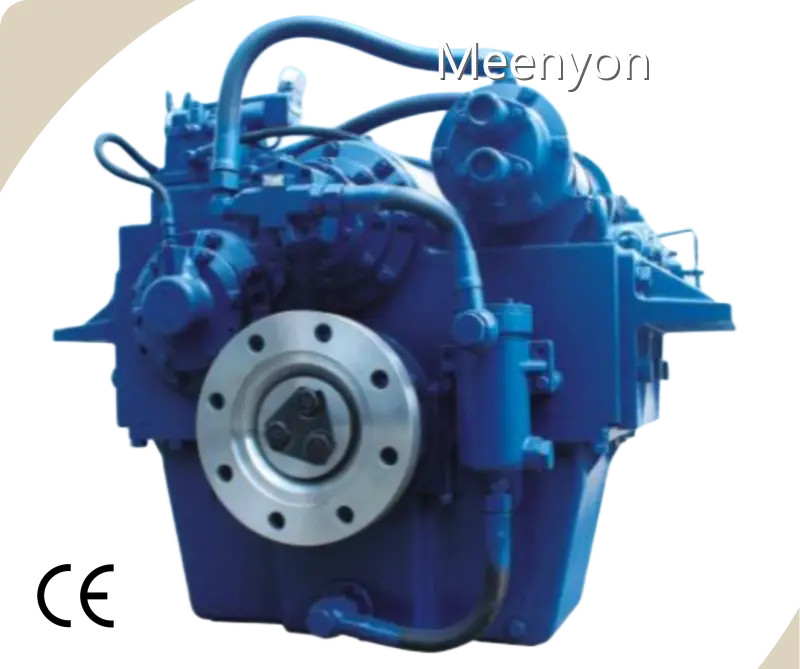

Product details of the marine engine gearbox
Product Overview
Raw materials used for the production of Meenyon marine engine gearbox is procured from reliable vendors. marine engine gearbox's quality is stable and reliable. Meenyon's marine engine gearbox is widely used in the industry and is widely recognized by customers. Meenyon's customer service is highly recommended by clients.
Product Description
Meenyon pays great attention to the details of marine engine gearbox. The following will show you one by one.
Features
● Durable structure of driving gear bearing
● Tapered roller thrust bearing for output shaft thrust
● Hydraulic clutches of forward and reverse
● Quality Control System ISO/IATF16949:2016
● Quiet operation with precise gearing.
● Compact design
● Go Home function (emergency bolt application)
Specification
|
Item |
Description |
|
Model 1200-1 |
|||||||
|
01 |
Engine speed: 600-1900 rpm; max 2368 hp at 1900 rpm |
|||||||||
|
02 |
Reduction Ratio :1 |
3.70 | 3.74 | 3.95 | 4.14 | 4.45 | 5.00 | 5.25 | 5.58 | |
|
03 |
Rate (hp/rpm) |
1.246 | 1.246 | 1.246 | 1.246 | 1.246 | 1.116 | 0.931 | 0.871 | |
|
04 |
Bell housing: No |
Flywheel: main engine flywheel |
||||||||
|
05 |
Overall L×W×H: 1096×1260×1270 mm |
Dry weight: 2500 kg |
||||||||
|
06 |
Centre distance: 450 mm |
|||||||||
|
07 |
Recommend engine: CW8200ZC, 8210ZC… |
|||||||||
|
08 |
Rated propeller thrust: 140 KN |
|||||||||
Dimension
|
Model 1200-1 |
|
|
C |
450 mm |
|
S |
mm |
|
F |
mm |
|
L |
mm |
|
R |
mm |
