MEENYON - Customized Marine Gearboxes Manufacturer & Supplier for 40 Years

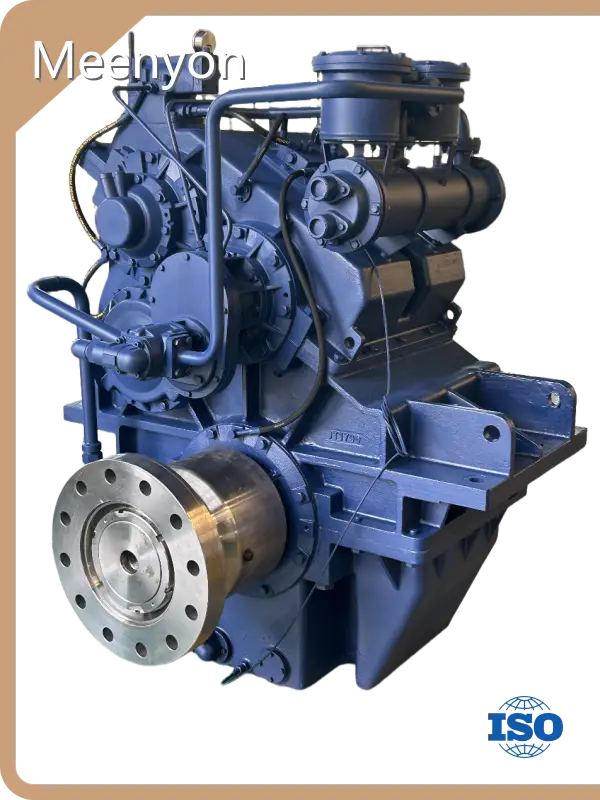

Light Duty Gearbox by Meenyon

Product details of the light duty gearbox

Quick Overview

Meenyon light duty gearbox is manufactured according to the international advanced production practice - lean production and by use of internationally-sourced high-quality materials. Buying our competitive-priced light duty gearbox doesn't mean that qulaity is not reliable. Meenyon's light duty gearbox can meet the different needs of customers. The product has been recognized in the industry for its integrity and strength.

Product Description

Meenyon pursues excellent quality and strives for perfection in every detail during the production.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

Options

● Mechanical, pneumatic or electrical remote control

Specification

Item	Description			Model T2000
01	Engine speed: 600-1500 rpm; max 2975 hp at 1500 rpm
02	Reduction Ratio :1	5.19	5.455		5.49	6.558	7.01	7.48	7.76	8.00	8.57	8.71	8.84	9.05	9.32	9.43	9.643	10.04	11.00
03	Rate (hp/rpm)	1.983	1.983		1.983	1.983	1.983	1.983	1.983	1.983	1.983	1.796	1.796	1.820	1.780	1.648	1.680	1.621	1.340
04	Bell housing: #0						Flywheel: main engine
05	Overall L×W×H: 1284×1600×1835 mm						Dry weight: 5600 kg
06	Centre distance: 625 mm
07	Recommend engine:
08	Rated propeller thrust: 270 KN

Dimension

Model T2000
C	625 mm
S	mm
F	mm
L	mm
R	mm

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.

Company Information

As for the technology strength, Meenyon is equipped with professional and experienced engineers to produce light duty gearbox. Meenyon has a professional level of mature technology. Meenyon will provide more cost-effective products as well as more perfect and faster service. Inquire now!
We have ample inventory and discounts for large purchases. Welcome to contact us!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
