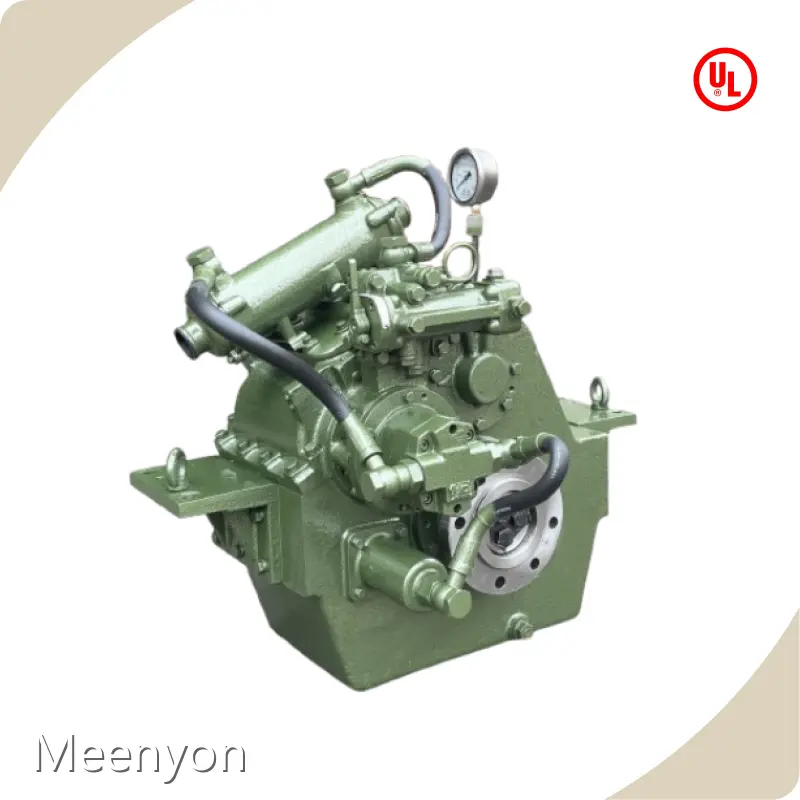

Product details of the marine transmission system

Quick Overview

Meenyon marine transmission system is produced by state-of-the-art precision machines. Our full quality inspection throughout the whole manufacturing process greatly ensures that the product is 100% qualified in quality and performance. Multiple in function and wide in application, marine transmission system can be used in many industries and fields. Meenyon has professional R&D team and after-sales team in order to provide reasonable quality products and service to customers.

Product Introduction

marine transmission system's outstanding advantages are as follows.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● 7° down angle on output shaft

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

OPTIONS

● Mechanical or electrical remote control

Specification

Item	Description	Model MV100A 7°
01	Engine speed: 1000-3000 rpm; max 402 hp at 3000 rpm
02	Reduction Ratio :1	1.23	1.28	1.62	2.07	2.56	2.87
03	Rate (hp/rpm)	0.134	0.134	0.134	0.134	0.121	0.107
04	Bell housing: SAE #1, #2, #3				Flywheel: 14”, 11.5”
05	Overall L×W×H: 485×508×580 mm				Dry weight: 220 kg
06	Centre distance: 0 mm (coaxial); 7° down angle on output shaft
07	Recommend engine: NT-855-M240, MWM D234 V8 …
08	Rated propeller thrust: 20 kN

Dimension

Model MV100A 7°
C	0 mm
S
F
L
R
A	7°

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.
