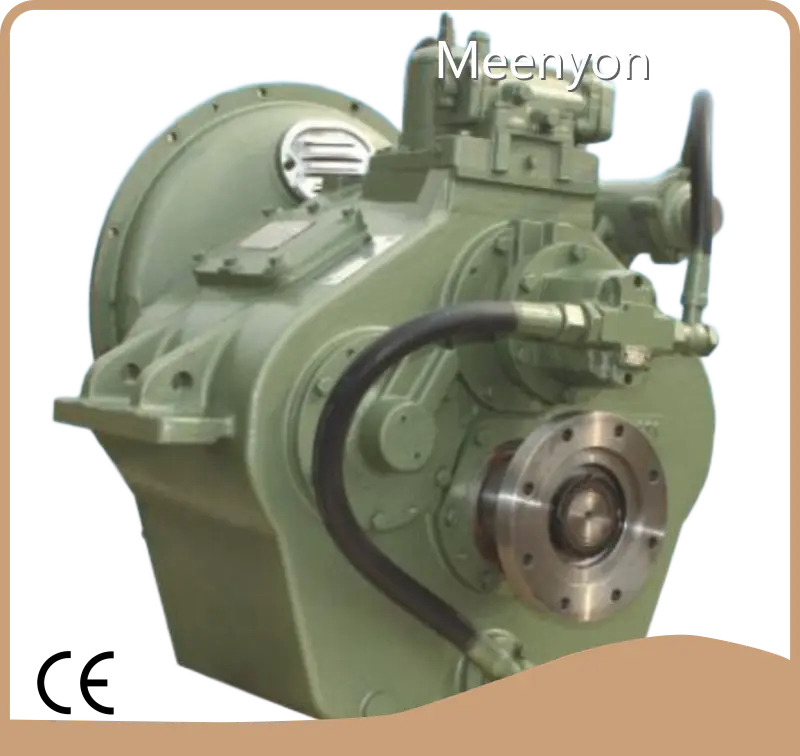

Industrial Reduction Gearbox by Meenyon

Product details of the industrial reduction gearbox

Product Overview

Meenyon industrial reduction gearbox is fabricated utilizing the sophisticated production equipment and facilities. Through a rigorous quality control system, the stability of this product is ensured. Our industrial reduction gearbox meets the needs of multiple industries and fields. The product can meet the various needs of application because of its critical characteristics.

Product Description

Meenyon will show you the specific details of products below.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

OPTIONS

● Mechanical, pneumatic or electrical remote control

Specification

Item	Description	Model 120B
01	Engine speed: 750-1800 rpm; max 212.0 hp at 1800 rpm
02	Ratio :1	2.03	2.81	3.73
03	Rate (hp/rpm)	0.118	0.118	0.059
04	Bell housing: #1				Flywheel: 14”
05	Overall L×W×H: 605×744×770 mm				Dry weight: 400kg
06	Centre distance: 190 mm;
07	Recommend engine:6135Ca, 4120
08	Rated propeller thrust: 25.0 kN

Dimension

Model 120B
C	190 mm
S
F
L
R

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.

Company Advantages

Meenyon is very professional in manufacturing and supplying industrial reduction gearbox. We have employed a professional manufacturing team. They have long term experience in solving difficult manufacturing challenges. Their technology competence is far beyond average. We have established a customer-centric belief system. We aim to deliver a positive experience and providing unparalleled levels of attention and support so that customers can focus on growing their business.
Don't forget to contact us to order.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
