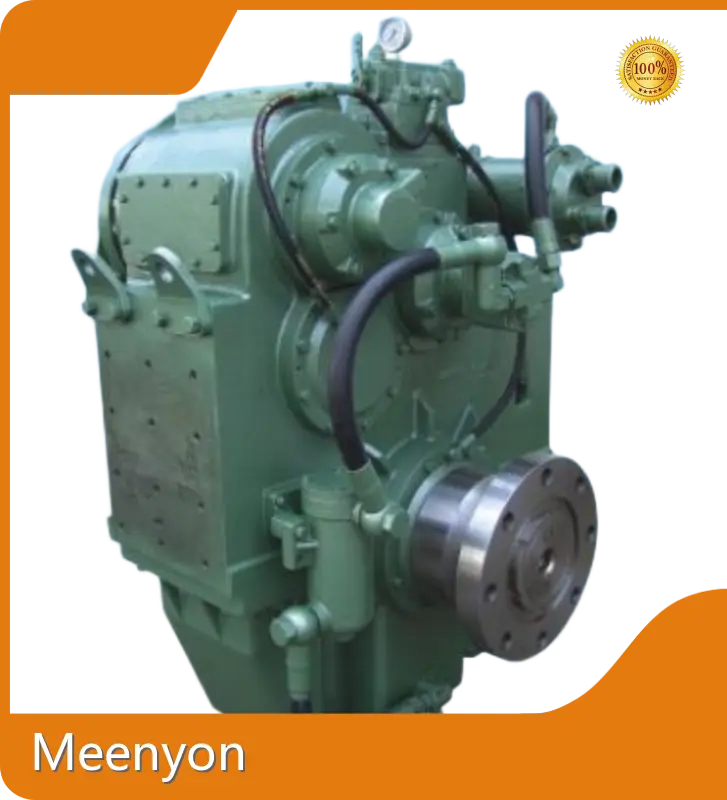

Product details of the industrial gearbox

Product Information

Meenyon industrial gearbox has been paid 100% attention from the selection of raw materials to production. The product has a long service life and long-lasting performance, which has been approved by international certificates. Supported by the industry's knowledgeable technicians and customer service team, Meenyon wins great reputation since founded.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

Specification

Item	Description			Model T400A-1
01	Engine speed: 1000-2100 rpm; max 932 hp at 2100 rpm
02	Reduction Ratio :1	8.15	8.69		9.27	9.94	10.60	11.37	12.00	12.50	13.96
03	Rate (hp/rpm)	0.444	0.444		0.444	0.424	0.389	0.367	0.351	0.351	0.273
04	Bell housing: #0, #1					Flywheel: 14”, 16”,18”
05	Overall L×W×H: 869×920×1327 mm					Dry weight: 1500 kg
06	Centre distance: 465 mm
07	Recommend engine: KT38-M800, TBD604BL6, CAT3412TA…
08	Rated propeller thrust: 120 KN

Dimension

Model T400A-2
C	465 mm
S	mm
F	mm
L	mm
R	mm

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.
