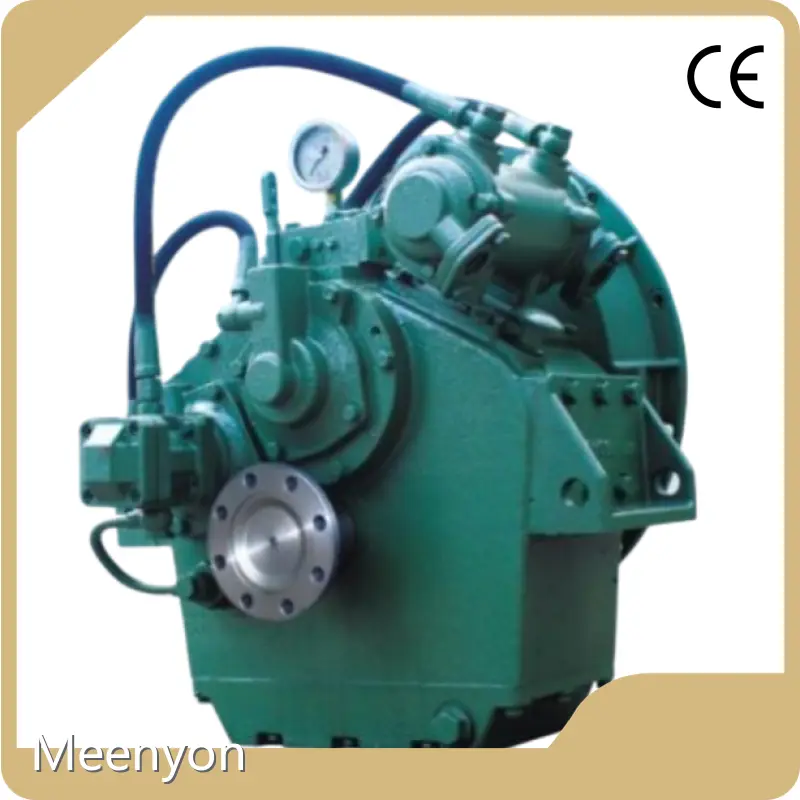

Industrial Gearbox by Meenyon

Inquiry

more products

Marine Gearbox

Hydraulic Marine Clutch

Aftermarket of Marine Gearbox

Marine Unit solution

Send your inquiry

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

OPTIONS

● Mechanical or electrical remote control

Specification

Item	Description	Model Q138
01	Engine speed: 1000-2600 rpm; max 385 hp at 2600 rpm
02	Reduction Ratio :1	1.03	1.25	1.50	2.03	2.48	2.95
03	Rate (hp/rpm)	0.148	0.148	0.148	0.148	0.148	0.131
04	Bell housing: SAE #1, #2, #3				Flywheel: 14”, 11.5”
05	Overall L×W×H: 504×619×616 mm				Dry weight: 240 kg
06	Centre distance: 165 mm
07	Recommend engine: NT-855-M240, CAT3406 …
08	Rated propeller thrust: 25 KN

Dimension

Model Q138
C	165 mm
S
F
L
R

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.

Company Advantages

· Meenyon industrial gearbox is manufactured using innovative tools and equipment as per the latest market trends & styles.

· This product is not only reliable in quality, but also excellent in long-term performance.

· Meenyon which Meenyon established with painstaking efforts is doomed not to stick to the rules.

Company Features

· Meenyon has years of industrial and trading experience in the industry of industrial gearbox.

· Meenyon has advanced industrial gearbox craft and technique.

· Attaching great importance of the customer service is essential for the development of Meenyon. Contact!

Application of the Product

Meenyon's industrial gearbox is of excellent quality and is widely used in the industry.

We can provide customers with the most professional and effective solutions based on market research results and customer needs.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
