Hot Sale Industrial Gearbox Manufacturers Company

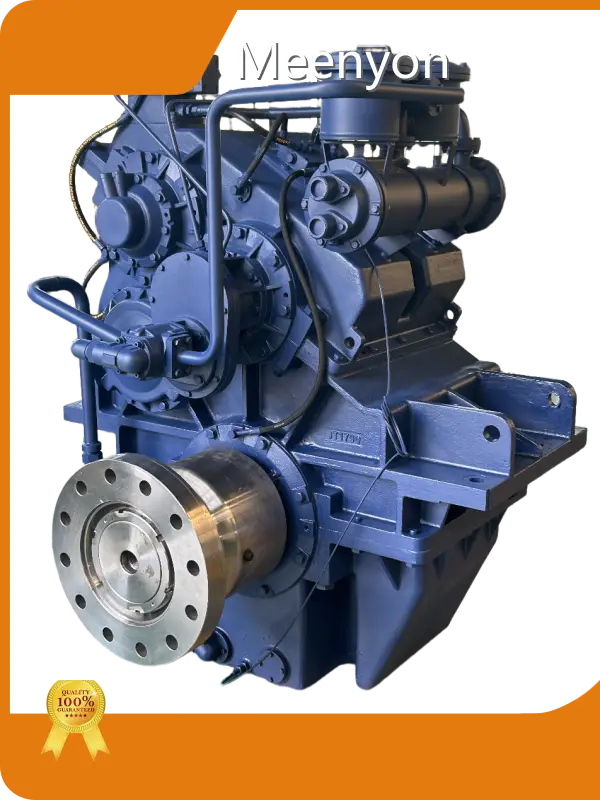

Product details of the industrial gearbox manufacturers

Product Introduction

The raw material of Meenyon industrial gearbox manufacturers goes through a rigorous selection procedure. Compared with similar products, this product has superior performance and long service life. We not only provide stable quality of industrial gearbox manufacturers, but also have an ideology of globalization.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

Options

● Mechanical, pneumatic or electrical remote control

Specification

Item	Description			Model T2000
01	Engine speed: 600-1500 rpm; max 2975 hp at 1500 rpm
02	Reduction Ratio :1	6.96	7.54		7.94	8.57	9.06	9.59	10.16	10.40	11.11	11.49	12.08	12.42	12.97	13.51	13.92
03	Rate (hp/rpm)	1.985	1.985		1.985	1.985	1.985	1.985	1.985	1.985	1.910	1.918	1.877	1.671	1.582	1.582	1.582
04	Bell housing: NO						Flywheel: main engine
05	Overall L×W×H: 1500×1760×2010 mm						Dry weight: 7000 kg
06	Centre distance: 690 mm
07	Recommend engine:
08	Rated propeller thrust: 340 KN

Dimension

Model T2000-1
C	690 mm
S	mm
F	mm
L	mm
R	mm

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.

Company Advantage

• Meenyon was founded in and we have developed the business for years.
• Customers' needs are the foundation for our company to achieve long-term development. In order to better serve customers and further meet the needs of customers, we have established a comprehensive after-sales service system to solve their problems. We sincerely and patiently provide customers with information consultation, technical training and product maintenance.
• We have an experienced, independent and stable professional production team to guarantee the production of high quality products.
If you want to know more relevant product information, feel free to contact us. We are dedicated to serving you.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
