Highly Ratedmarine Gearbox Supplier

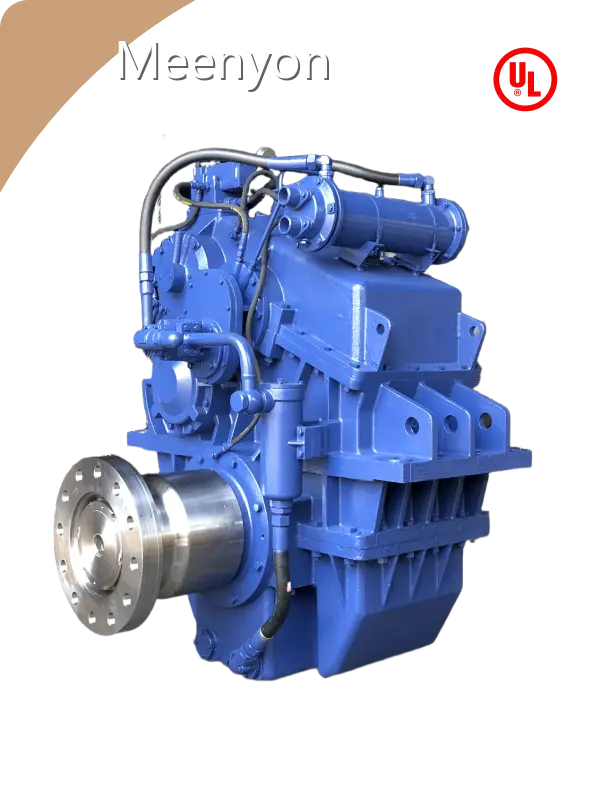

Product details of the marine gearbox supplier
Product Description
Meenyon marine gearbox supplier ensures the accuracy of specifications and the unity of structure. The product is of high quality and can withstand rigorous quality and performance tests. Meenyon has been focusing on developing its sales network of the marine gearbox supplier.
Features
● Durable structure of driving gear bearing
● Tapered roller thrust bearing for output shaft thrust
● Hydraulic clutches of forward and reverse
● Quality Control System ISO/IATF16949:2016
● Quiet operation with precise gearing.
● Compact design
● Go Home function (emergency bolt application)
Options
● Mechanical, pneumatic or electrical remote control
Specification
|
Item |
Description |
|
Model T1400-2 |
|
|
|
|
|
|
|
|
|||||||||
|
01 |
Engine speed: 600-1900 rpm; max 2624 hp at 1900 rpm |
|
|
|
|
|
|
|
|
|||||||||||
|
02 |
Reduction Ratio :1 |
10.47 | 11.15 | 11.50 | 12.01 | 12.43 |
12.96 |
13.41 | 14.02 | 14.53 | 15.10 | 15.53 | 16.00 | 16.52 | 17.01 | 17.60 | 17.99 | 18.41 | 19.07 | |
|
03 |
Rate (hp/rpm) |
1.381 | 1.381 | 1.381 | 1.381 | 1.336 | 1.251 | 1.236 | 1.184 | 1.143 | 1.016 | 0.988 | 0.959 | 0.929 | 0.902 | 0.872 | 0.853 | 0.833 | 0.805 | |
|
04 |
Bell housing: NO |
|
Flywheel: main engine |
|
|
|
|
|
|
|
|
|||||||||
|
05 |
Overall L×W×H: 1279×1600×2100 mm |
|
Dry weight: 5500 kg |
|
|
|
|
|
|
|
|
|||||||||
|
06 |
Centre distance: 722 mm |
|
|
|
|
|
|
|
|
|||||||||||
|
07 |
Recommend engine: |
|
|
|
|
|
|
|
|
|||||||||||
|
08 |
Rated propeller thrust: 220 KN |
|
|
|
|
|
|
|
|
|||||||||||
Dimension
|
Model T1400-2 |
|
|
C |
722 mm |
|
S |
mm |
|
F |
mm |
|
L |
mm |
|
R |
mm |
