High Speed Gearbox Manufacturers Solution Provider
Product details of the high speed gearbox manufacturers
Product Introduction
Meenyon high speed gearbox manufacturers is quite attractive with its design. Strict quality control of this product is an indispensable step during its production. This product sales to all parts of the country and a large number are exported to foreign markets.
Features
● Durable structure of driving gear bearing
● Tapered roller thrust bearing for output shaft thrust
● Hydraulic clutches of forward and reverse
● Quality Control System ISO/IATF16949:2016
● Quiet operation with precise gearing.
● Compact design
● Go Home function (emergency bolt application)
OPTIONS
● PTO
● Mechanical or electrical remote control
Specification
|
Item |
Description |
|

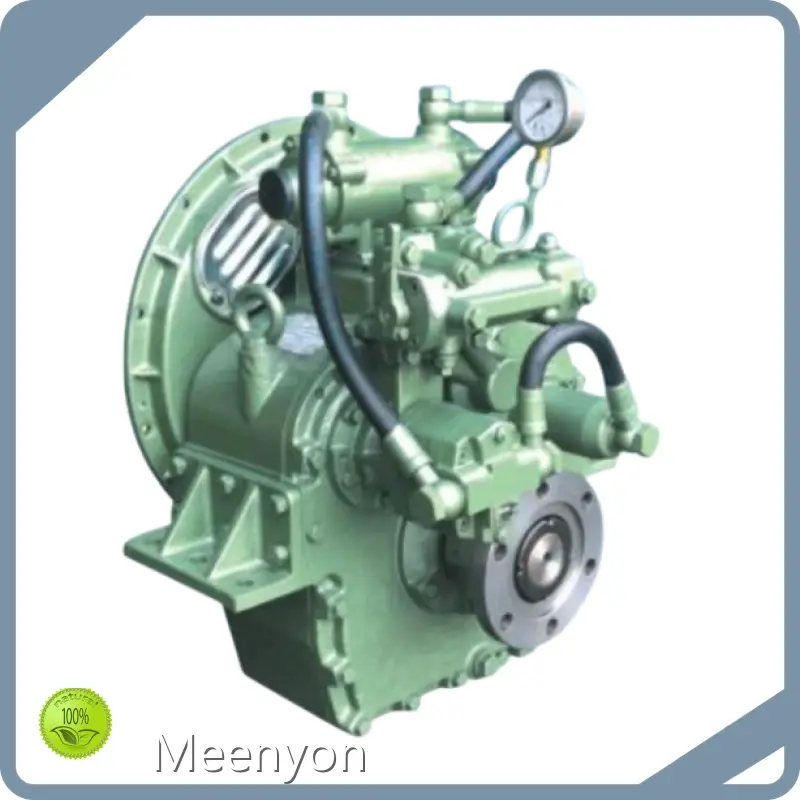

Model MB242 |
|
|||||||
|
01 |
Engine speed: 1000-2500 rpm; max 345.3 hp at 2500 rpm |
|
|||||||||
|
02 |
Reduction Ratio :1 |
2.00 | 2.54 | 3.04 | 3.52 | 3.955 | 4.53 |
5.12 |
5.56 |
5.88 |
|
|
03 |
Rate (hp/rpm) |
0.138 | 0.138 | 0.138 | 0.138 | 0.138 | 0.138 |
0.136 |
0.128 |
0.100 |
|
|
04 |
Bell housing: #1, #2, #3 |
Flywheel: 11.5”, 14” |
|
||||||||
|
05 |
Overall L×W×H: 422×774×763 mm |
Dry weight: 385 kg |
|
||||||||
|
06 |
Centre distance: 242 mm |
|
|||||||||
|
07 |
Recommend engine: NT-855-M240, CAT3406, 6135 |
|
|||||||||
|
08 |
Rated propeller thrust: 30.0 KN |
|
|||||||||
Dimension
|
Model MB242 |
|
|
C |
242 mm |
|
S |
244 mm |
|
F |
442 mm |
|
L |
283 mm |
|
R |
283 mm |
