High Rpm Gearbox Top Brand

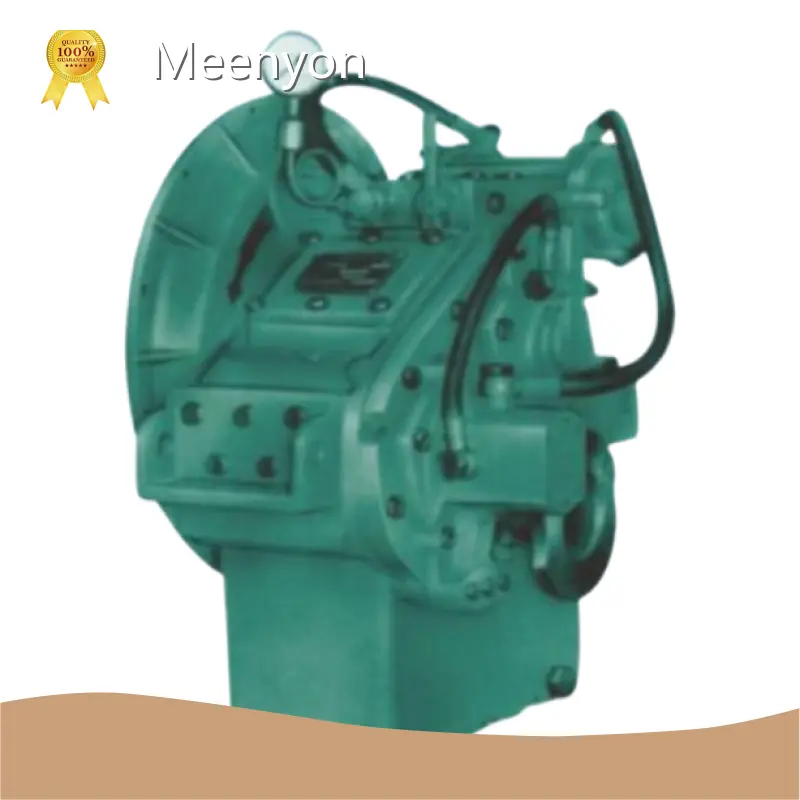

Product details of the high rpm gearbox

Product Description

With rational construction, high rpm gearbox takes on in a better way. The product is characterized by its high quality and durability. Due to its good characteristics, the product has received warm reception and rapid sales in the market.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

OPTIONS

● Mechanical or electrical remote control

Specification

Item	Description	Model 201
01	Engine speed: 1000-2200 rpm; max 493 hp at 2500 rpm
02	Reduction Ratio :1	2.48	2.96		3.53
03	Rate (hp/rpm)	0.197	0.197		0.177
04	Bell housing: SAE #0, #1, #2			Flywheel: 18”, 16”, 14”
05	Overall L×W×H: 556×691×735 mm			Dry weight: 350 kg
06	Centre distance: 205 mm
07	Recommend engine: 6135ZLCa, NT-855-M400 …
08	Rated propeller thrust: 30.0 KN

Dimension

Model 201
C	205 mm
S
F
L
R

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.
