High Rpm Gearbox Distributor
Product details of the high rpm gearbox
Product Information

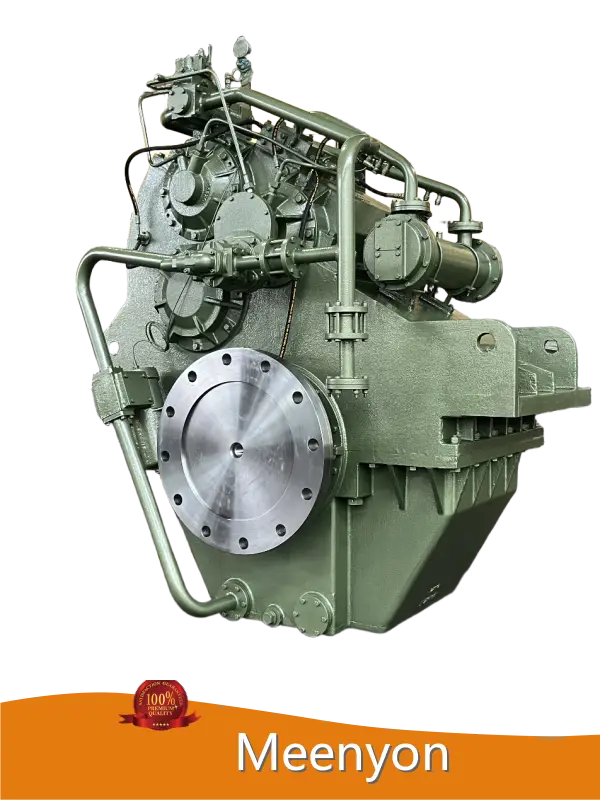

Meenyon high rpm gearbox has an appearance design that follows the market trend. It will undergo strict tests for quality before loading. The product suits for various application and has a great market prospect as it is increasingly popular in the industry.
Features
● Durable structure of driving gear bearing
● Tapered roller thrust bearing for output shaft thrust
● Hydraulic clutches of forward and reverse
● Quality Control System ISO/IATF16949:2016
● Quiet operation with precise gearing.
● Compact design
● Go Home function (emergency bolt application)
Options
● Mechanical, pneumatic or electrical remote control
Specification
|
Item |
Description |
|
Model T27000 |
|
|
|
|
||||||||
|
01 |
Engine speed: 500-1400 rpm; max 3849 hp at 1400 rpm |
|
|
|
|
||||||||||
|
02 |
Reduction Ratio :1 |
4.92 | 5.43 | 6.16 | 6.58 | 7.03 | 7.53 | 8.01 | 8.54 | 9.12 | 9.42 | 10.05 | 10.68 | 11.54 | |
|
03 |
Rate (hp/rpm) |
2.749 | 2.749 | 2.749 | 2.749 | 2.749 | 2.749 | 2.749 | 2.575 | 2.454 | 2.360 | 2.065 | 2.100 | 2.937 | |
|
04 |
Bell housing: NO |
Flywheel: main engine |
|
|
|
|
|||||||||
|
05 |
Overall L×W×H: 1900×2000×1970 mm |
Dry weight: 7200 kg |
|
|
|
|
|||||||||
|
06 |
Centre distance: 680 mm |
|
|
|
|
||||||||||
|
07 |
Recommend engine: |
|
|
|
|
||||||||||
|
08 |
Rated propeller thrust: 340 KN |
|
|
|
|
||||||||||
Dimension
|
Model T2700 |
|
|
C |
680 mm |
|
S |
mm |
|
F |
mm |
|
L |
mm |
|
R |
mm |
