High-Quality Yacht Gearbox Factory Direct Supply
Product details of the yacht gearbox
Quick Overview

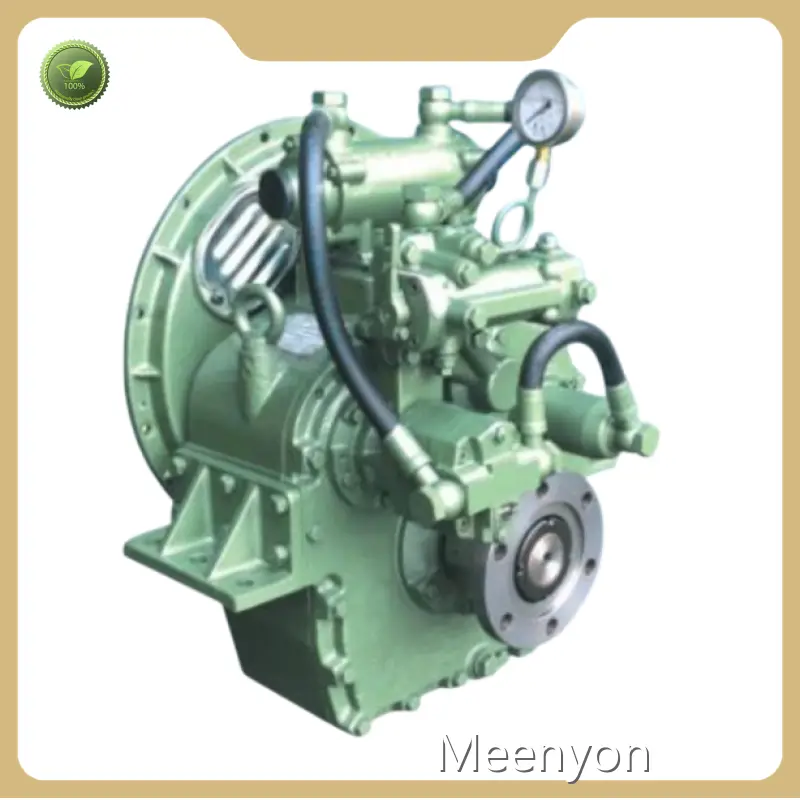

Meenyon yacht gearbox is fabricated utilizing premium raw materials that are sourced from reputable vendors. The product comes with assured quality, which has been proven by international certifications. This Meenyon branded product has been recognized and supported by customers at home and abroad.
Product Information
Meenyon pays great attention to the details of yacht gearbox. The following will show you one by one.
Features
● Durable structure of driving gear bearing
● Tapered roller thrust bearing for output shaft thrust
● Hydraulic clutches of forward and reverse
● Quality Control System ISO/IATF16949:2016
● Quiet operation with precise gearing.
● Compact design
● Go Home function (emergency bolt application)
OPTIONS
● PTO
● Mechanical, pneumatic or electrical remote control
Specification
|
Item |
Description |
|
Model T300 |
|
|||||||
|
01 |
Engine speed: 750-2300 rpm; max 750 hp at 2300 rpm |
|
|||||||||
|
02 |
Reduction Ratio :1 |
1.73 | 4.95 | 5.51 | 6.03 | 6.65 | 7.04 | 7.54 | 8.02 | 8.47 | |
|
03 |
Rate (hp/rpm) |
0.326 | 0.326 | 0.326 | 0.326 | 0.326 | 0.326 | 0.296 | 0.296 | 0.268 | |
|
04 |
Bell housing: #0, #1 |
Flywheel: 14”, 16”,18” |
|
||||||||
|
05 |
Overall L×W×H: 772×980×1106 mm |
Dry weight: 1120 kg |
|
||||||||
|
06 |
Centre distance: 355 mm |
|
|||||||||
|
07 |
Recommend engine: KTA19-M600; TBD234V12 … |
|
|||||||||
|
08 |
Rated propeller thrust: 70 KN |
|
|||||||||
Dimension
|
Model T300 |
|
|
C |
355 mm |
|
S |
455 mm |
|
F |
665 mm |
|
L |
460 mm |
|
R |
460 mm |
