High-Quality Marine Gearbox Manufacturers Price List

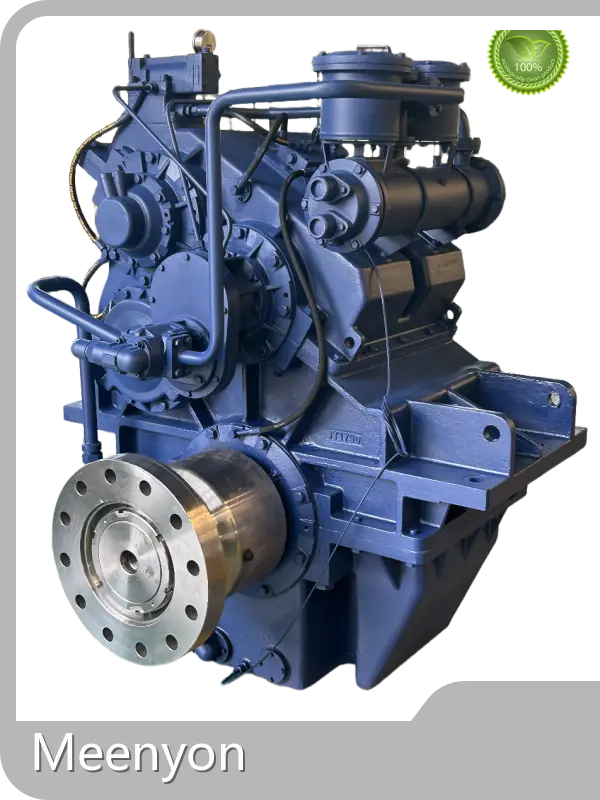

Product details of the marine gearbox manufacturers
Product Description
To produce first-class Meenyon marine gearbox manufacturers, our workers adopt superior raw materials. The strict quality system ensures the high performance of this product. The product is currently well-received in the market and is applied by more and more people.
Features
● Durable structure of driving gear bearing
● Tapered roller thrust bearing for output shaft thrust
● Hydraulic clutches of forward and reverse
● Quality Control System ISO/IATF16949:2016
● Quiet operation with precise gearing.
● Compact design
● Go Home function (emergency bolt application)
Options
● Mechanical, pneumatic or electrical remote control
Specification
|
Item |
Description |
|
Model T2000 |
|
|
|
|
||||||||||
|
01 |
Engine speed: 600-1500 rpm; max 2975 hp at 1500 rpm |
|
|
|
|
||||||||||||
|
02 |
Reduction Ratio :1 |
6.96 | 7.54 | 7.94 | 8.57 | 9.06 | 9.59 | 10.16 | 10.40 | 11.11 | 11.49 | 12.08 | 12.42 | 12.97 | 13.51 | 13.92 | |
|
03 |
Rate (hp/rpm) |
1.985 | 1.985 | 1.985 | 1.985 | 1.985 | 1.985 | 1.985 | 1.985 | 1.910 | 1.918 | 1.877 | 1.671 | 1.582 | 1.582 | 1.582 | |
|
04 |
Bell housing: NO |
|
Flywheel: main engine |
|
|
|
|
||||||||||
|
05 |
Overall L×W×H: 1500×1760×2010 mm |
|
Dry weight: 7000 kg |
|
|
|
|
||||||||||
|
06 |
Centre distance: 690 mm |
|
|
|
|
||||||||||||
|
07 |
Recommend engine: |
|
|
|
|
||||||||||||
|
08 |
Rated propeller thrust: 340 KN |
|
|
|
|
||||||||||||
Dimension
|
Model T2000-1 |
|
|
C |
690 mm |
|
S |
mm |
|
F |
mm |
|
L |
mm |
|
R |
mm |
faq
Company Feature
• Meenyon has a group of production talents to ensure high quality of products.
• Meenyon has a mature online marketing system. Marine Gearbox,Marine Gearbox Parts,Marine Power System Solution,Marine Hydraulic Clutch are sold to major provinces, cities and autonomous regions across the country based on an online platform. Moreover, some products are exported to Europe, America, Southeast Asia, and other countries and regions.
• During the development for years, Meenyon has built a business model with a high-tech industrial chain.
• Meenyon always put customers first and provides them with sincere and quality services.
Meenyon's Marine Gearbox,Marine Gearbox Parts,Marine Power System Solution,Marine Hydraulic Clutch are highly cost-effective with reliable quality. Your consulting and order are welcome.
