Heavy Duty Gearbox Medium and Heavy Duty Gearbox Wholesale - Meenyon

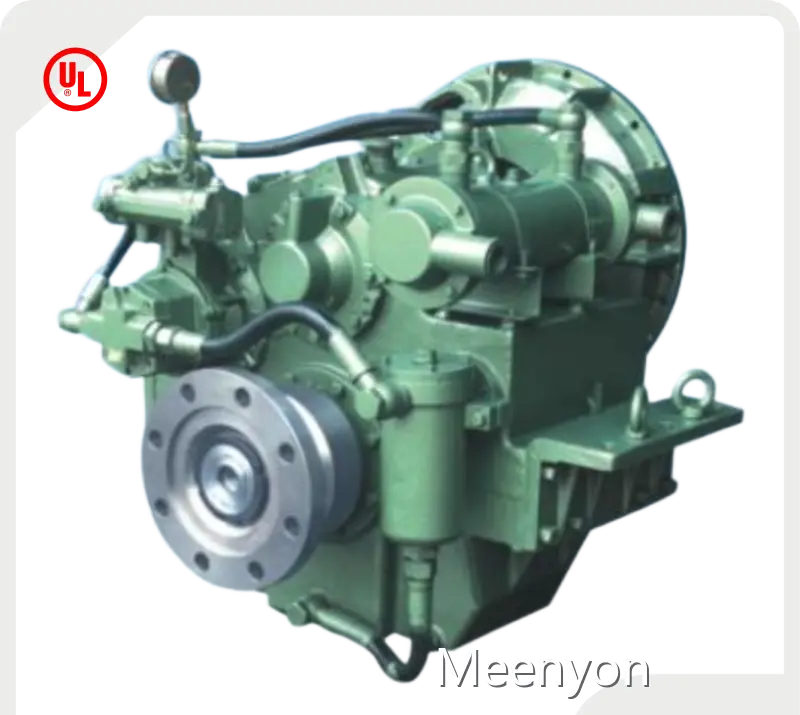

Product details of the heavy duty gearbox
Product Overview
Meenyon heavy duty gearbox is made of well-selected materials and manufactured by experienced staff using the advanced equipment as per set industry principles and guidelines, representing the finest workmanship in the industry. Strict and perfect quality control system, to ensure that products with the best quality and performance production. Meenyon's heavy duty gearbox is widely used in multiple industries and fields. Meenyon not only pays attention to domestic product standards, our heavy duty gearbox has passed international certificates.
Product Introduction
Our heavy duty gearbox are perfect in every detail.
Features
● Durable structure of driving gear bearing
● Tapered roller thrust bearing for output shaft thrust
● Hydraulic clutches of forward and reverse
● Quality Control System ISO/IATF16949:2016
● Quiet operation with precise gearing.
● Compact design
● Go Home function (emergency bolt application)
Options
● Mechanical, pneumatic or electrical remote control
Specification
|
Item |
Description |
|
Model 400 |
|
|
|||||||
|
01 |
Engine speed: 1000-1800 rpm; max 799 hp at 1800 rpm |
|
|
|||||||||
|
02 |
Reduction Ratio :1 |
1.50 | 1.77 | 2.04 | 2.50 | 2.86 | 3.00 | 3.42 | 4.06 | 4.61 | 4.94 | |
|
03 |
Rate (hp/rpm) |
0.444 | 0.444 | 0.444 | 0.444 | 0.444 | 0.444 | 0.444 | 0.373 | 0.254 | 0.254 | |
|
04 |
Bell housing: #0, #1 |
Flywheel: 14”, 16”,18” |
|
|
||||||||
|
05 |
Overall L×W×H: 641×1010×890 mm |
Dry weight: 820 kg |
|
|
||||||||
|
06 |
Centre distance: 264 mm |
|
|
|||||||||
|
07 |
Recommend engine: CAT3412TA, TBD604BL6… |
|
|
|||||||||
|
08 |
Rated propeller thrust: 82 KN |
|
|
|||||||||
Dimension
|
Model 400 |
|
|
C |
264 mm |
|
S |
273 mm |
|
F |
636 mm |
|
L |
365 mm |
|
R |
365 mm |
