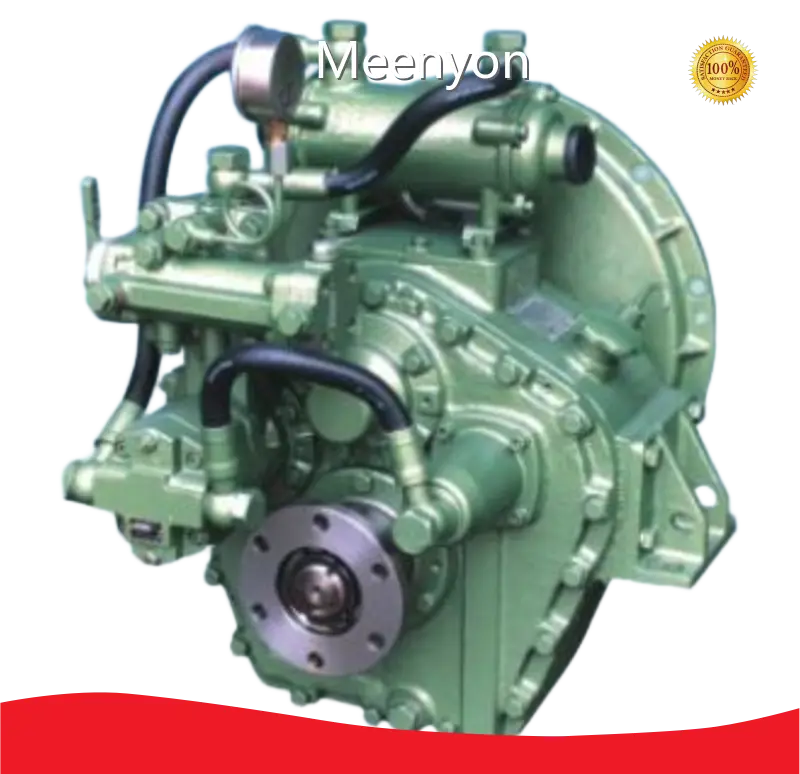

Product details of the heavy duty gear reduction box

Product Description

Meenyon heavy duty gear reduction box is available in numerous design styles. The quality of the product has been recognized by the international authoritative test institute. Meenyon has received much fame for its professional customer service.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

OPTIONS

● PTO

● Mechanical, pneumatic or electrical remote control

Specification

Item	Description	Model D138
01	Engine speed: 1000-2500 rpm; max 368.0 hp at 2500 rpm
02	Ratio :1	5.05	5.63	6.06	6.47
03	Rate (hp/rpm)	0.147	0.147	0.133	0.125
04	Bell housing: #1,#2				Flywheel: 11.5”, 14”
05	Overall L×W×H: 494×800×870 mm				Dry weight: 415kg
06	Centre distance: 296 mm;
07	Recommend engine:NT-855-M240, CAT3406, 6135Ca
08	Rated propeller thrust: 40.0 kN

Dimension

Model D138
C	296 mm
S
F
L
R

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.
