MEENYON - Customized Marine Gearboxes Manufacturer & Supplier for 40 Years

Heavy Duty Gear Box Factory Price

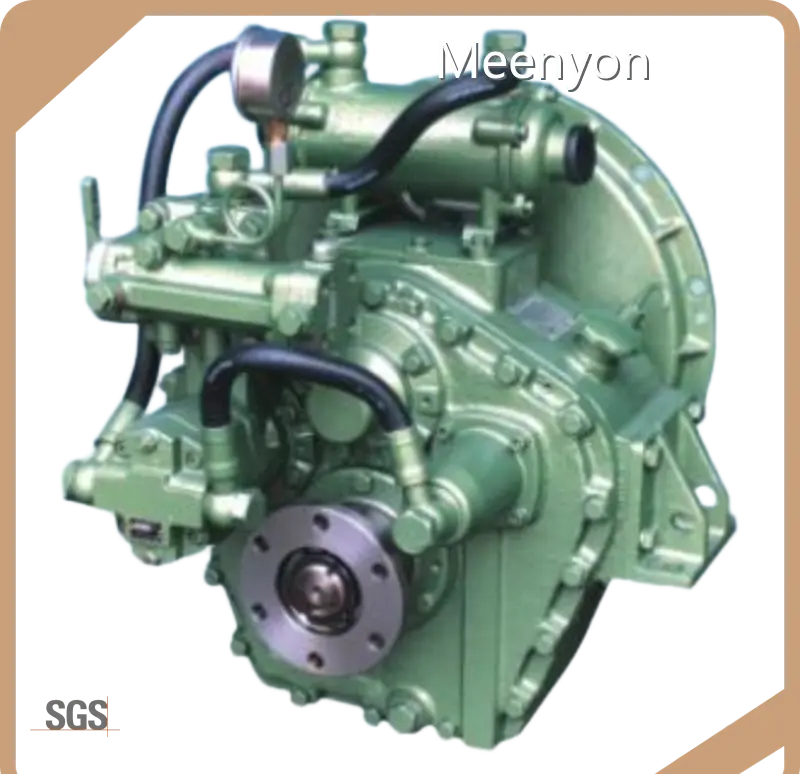

Product details of the heavy duty gear box

Product Information

Meenyon heavy duty gear box is accomplished with the help of our sophisticated workers. The product has passed strict quality assessment and inspection before leaving the factory. This product is now in high demand in the market and is taking up greater market share.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

OPTIONS

● PTO

● Mechanical, pneumatic or electrical remote control

Specification

Item	Description	Model D138
01	Engine speed: 1000-2500 rpm; max 368.0 hp at 2500 rpm
02	Ratio :1	5.05	5.63	6.06	6.47
03	Rate (hp/rpm)	0.147	0.147	0.133	0.125
04	Bell housing: #1,#2				Flywheel: 11.5”, 14”
05	Overall L×W×H: 494×800×870 mm				Dry weight: 415kg
06	Centre distance: 296 mm;
07	Recommend engine:NT-855-M240, CAT3406, 6135Ca
08	Rated propeller thrust: 40.0 kN

Dimension

Model D138
C	296 mm
S
F
L
R

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.

Company Advantage

• Since the establishment in Meenyon has been pursuing innovation and progress. Now we have a relatively large business scale and great corporate strength.
• Meenyon brings together many middle and senior technical talents who have worked hard for many years in the industry.
• In addition to the domestic major cities, Meenyon sells Marine Gearbox,Marine Gearbox Parts,Marine Power System Solution,Marine Hydraulic Clutch to Southeast Asia, Europe, America, Europe, and other countries and regions.
• Our company has established a comprehensive product supply and after sales service system. To enhance sense of relying for us, we are persevering in offering thoughtful service for every customer.
Consult Meenyon right now and enjoy the discount!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
