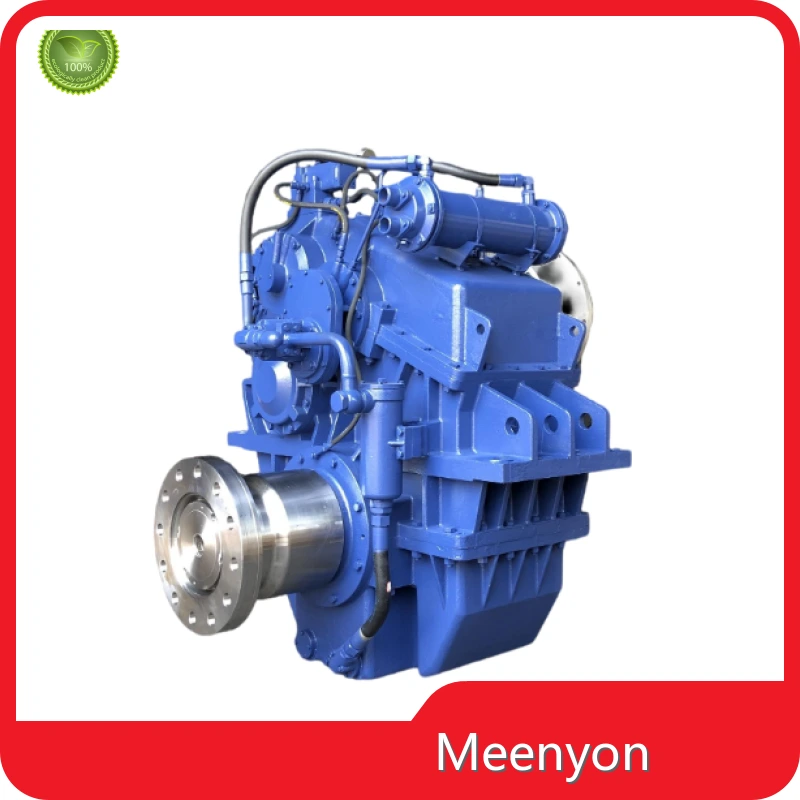

Product details of the heavy duty gear box


Product Overview

The quality level of Meenyon heavy duty gear box is up to international standard. The product has been quality tested before delivery to ensure that it is flawless and free from any defect. Meenyon's customer service has got to keep the clients' happiness in mind.


Product Description

Compared with products in the same category, heavy duty gear box's core competencies are mainly reflected in the following aspects.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

OPTIONS

● Mechanical, pneumatic or electrical remote control

Specification

Item

Description

Model T1400

01

Engine speed: 600-1900 rpm; max 2624 hp at 1900 rpm

02

Ratio :1

4.06

4.51

5.03

5.52

5.97

6.48

7.03

7.50

8.01

8.47

8.59

8.98

9.12

9.55

11.06

03

Rate (hp/rpm)

1.381

1.381

1.381

1.381

1.381

1.381

1.381

1.381

1.381

1.341

1.287

1.247

1.207

1.140

0.986

04

Bell housing: No

Flywheel: main engine

05

Overall L×W×H: 1306×1380×1750 mm

Dry weight: 3800 kg

06

Centre distance: 550 mm

07

Recommend engine:

08

Rated propeller thrust: 220 KN

Dimension


Model T1400

C

550 mm

S



F



L



R



faq

1
What Is A Marine Gearbox Used For?
A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.
2
What Are The Main Components Of A Marine Gearbox?
The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.
