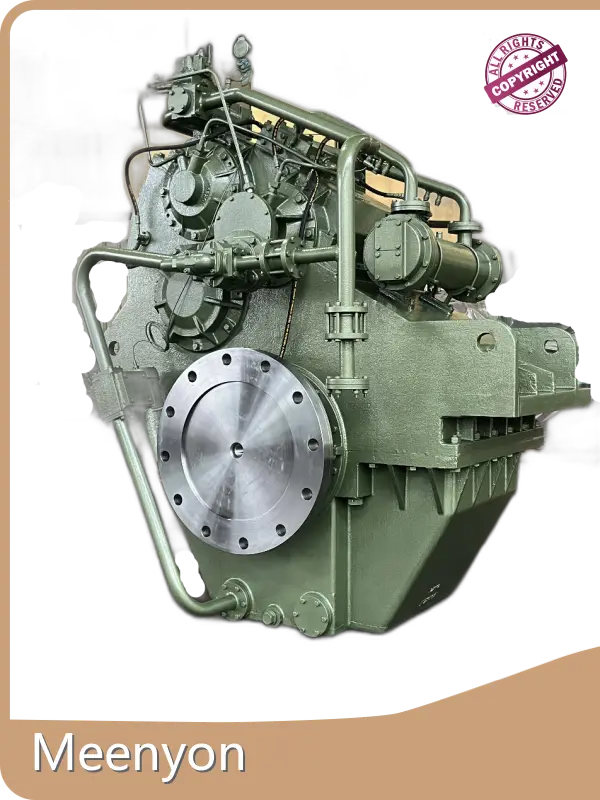

Product details of the heavy duty gear box

Product Introduction

Meenyon heavy duty gear box is designed by our professional team who has been specializing in this field for years. The quality and functionality of this product are second to none. Top quality heavy duty gear box is the most important thing Meenyon can do to improve relationships with its customers.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

Specification

Item	Description	Model 2700
01	Engine speed: 500-14000 rpm; max 3849 hp at 1400 rpm.
02	Ratio :1	1.54	2.03	2.58	3.09	3.48	3.95	4.47
03	Rate (hp/rpm)	2.749	2.749	2.749	2.749	2.749	2.749	2.347
04	Bell housing: NO				Flywheel: main engine
05	Overall L×W×H: 1613×1670×1650mm				Dry weight: 4700kg
06	Centre distance: 490mm
07	Recommend engine:
08	Rated propeller thrust: 270kN

Dimension

Model 2700
C	490mm
S
F
L
R

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.

Company Advantage

• Meenyon is dedicated to constantly providing efficient services based on customer demand.
• Meenyon has a group of R&D technical personnel with great technical abilities. We also have well-trained personnel engaged in after-sales service. They play a significant role in sustainable development.
• Meenyon is located in a unique geographical position with pleasant climate and rich resources. Meanwhile, the traffic convenience is conducive to the circulation and transportation of products.
• Meenyon strives to open up the domestic and international market. Marine Gearbox,Marine Gearbox Parts,Marine Power System Solution,Marine Hydraulic Clutch are sold well in China and exported to some countries and regions in Europe, America, Africa and Southeast Asia.
If you are in need for products of reliable quality and affordable price, please contact us at any time!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
