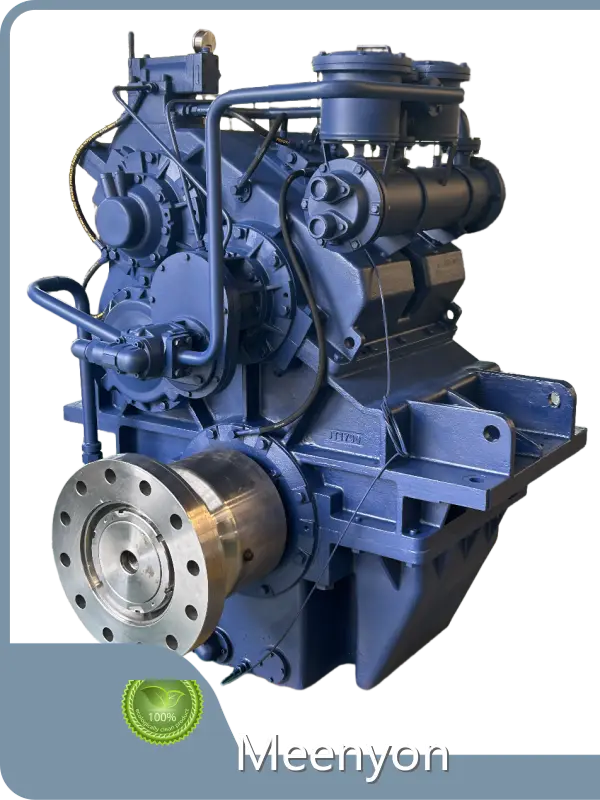

Product details of the marine gearbox manufacturers
Product Introduction
Good material of marine gearbox manufacturers makes good sale in Meenyon. This product has passed through many international certifications. Meenyon is a technically advanced company which supplies marine gearbox manufacturers with high quality.
Features
● Durable structure of driving gear bearing
● Tapered roller thrust bearing for output shaft thrust
● Hydraulic clutches of forward and reverse
● Quality Control System ISO/IATF16949:2016
● Quiet operation with precise gearing.
● Compact design
● Go Home function (emergency bolt application)
Options
● Mechanical, pneumatic or electrical remote control
Specification
|
Item |
Description |
|
Model D1600 |
|||||||||
|
01 |
Engine speed: 500-1650 rpm; max 2680 hp at 1650 rpm |
|||||||||||
|
02 |
Reduction Ratio :1 |
2.97 | 3.50 | 3.96 | 4.48 | 4.95 | 5.25 | 5.58 | 5.49 | |||
|
03 |
Rate (hp/rpm) |
1.625 | 1.625 | 1.625 | 1.625 | 1.625 | 1.625 | 1.500 | 1.400 | |||
|
04 |
Bell housing: NO |
|
Flywheel: main engine |
|||||||||
|
05 |
Overall L×W×H: 1291×1620×1590 mm |
|
Dry weight: 4000 kg |
|||||||||
|
06 |
Centre distance: 520 mm |
|||||||||||
|
07 |
Recommend engine: |
|||||||||||
|
08 |
Rated propeller thrust: 200 KN |
|||||||||||
Dimension
|
Model D1600 |
|
|
C |
520 mm |
|
S |
mm |
|
F |
mm |
|
L |
mm |
|
R |
mm |
