Factory Price Marine Gear Box Company

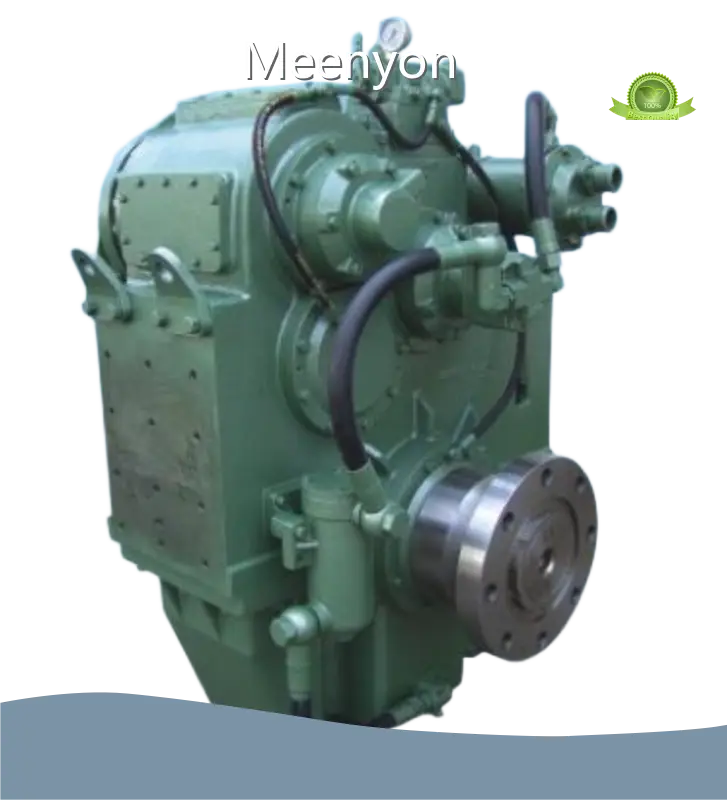

Product details of the marine gear box
Product Description
Meenyon marine gear box meets the latest industry production standards. This product guarantees high quality and excellent performance, as all factors affecting its quality and production performance are immediately detected and then corrected by our trained QC personnel. The product is competitive in the market meeting the ever-changing needs of customers.
Features
● Durable structure of driving gear bearing
● Tapered roller thrust bearing for output shaft thrust
● Hydraulic clutches of forward and reverse
● Quality Control System ISO/IATF16949:2016
● Quiet operation with precise gearing.
● Compact design
● Go Home function (emergency bolt application)
Specification
|
Item |
Description |
|
Model G403 |
|||||||
|
01 |
Engine speed: 1000-2400 rpm; max 900 hp at 2400 rpm |
|||||||||
|
02 |
Reduction Ratio :1 |
6.21 | 6.40 | 7.01 | 7.45 | 8.43 | 8.97 | 9.32 | 9.94 | |
|
03 |
Rate (hp/rpm) |
0.444 | 0.430 | 0.393 | 0.347 | 0.327 | 0.307 | 0.296 | 0.278 | |
|
04 |
Bell housing: #0, #1 |
Flywheel: 14”, 16”,18” |
||||||||
|
05 |
Overall L×W×H: 815×920×1200 mm |
Dry weight: 1000 kg |
||||||||
|
06 |
Centre distance: 355 mm |
|||||||||
|
07 |
Recommend engine: KTA19-M600; CAT3412TA … |
|||||||||
|
08 |
Rated propeller thrust: 82 KN |
|||||||||
Dimension
|
Model G403 |
|
|
C |
355 mm |
|
S |
mm |
|
F |
mm |
|
L |
mm |
|
R |
mm |
