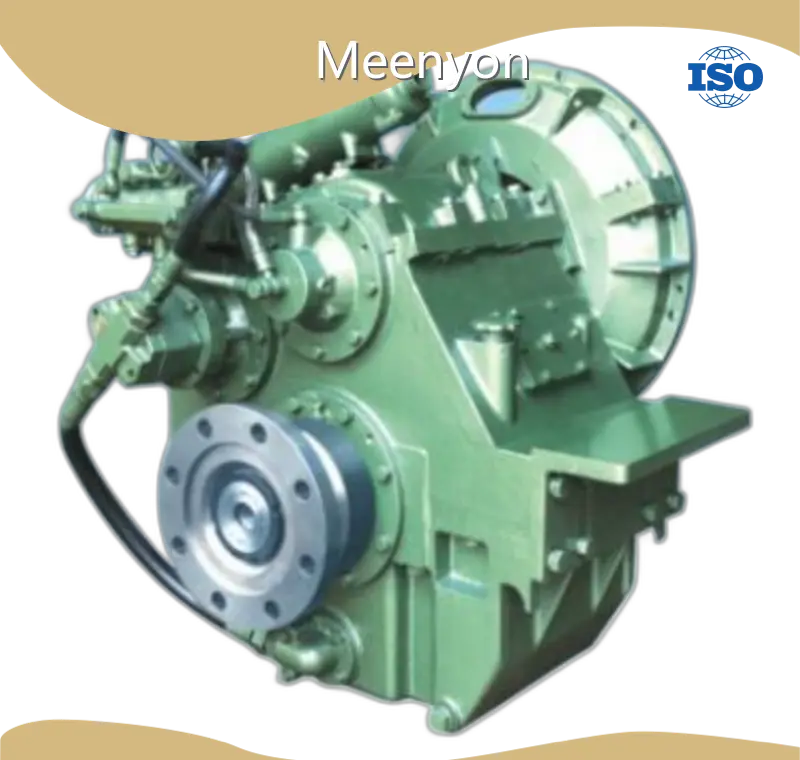

Product details of the marine gearbox

Product Information

Meenyon marine gearbox is carefully chosen from top grade suppliers. Its developing requires stringent testing to ensure quality and performance. Only those that pass rigorous tests will go to the marketplace. This product is versatile and widely used in various fields.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

Specification

Item	Description	Model 300
01	Engine speed: 750-20000 rpm; max 266 hp at 2000 rpm.
02	Ratio :1	1.87	2.04	2.54	3.00	3.35	3.53	4.10	4.47	4.61	4.94	5.44
03	Rate (hp/rpm)	0.345	0.345	0.345	0.326	0.296	0.296	0.296	0.296	0.247	0.197	0.168
04	Bell housing: #0, #1				Flywheel: SAE 18”,16”,14”
05	Overall L×W×H:786×930×864mm				Dry weight: 740kg
06	Centre distance: 264mm ;
07	Recommend engine:KTA19-M600, TBD234V12…
08	Rated propeller thrust: 50kN

Dimension

Model 300
C	264mm
S	270mm
F	648mm
L	435mm
R	435mm

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.
