Cost-effective Large Industrial Gearboxes Company

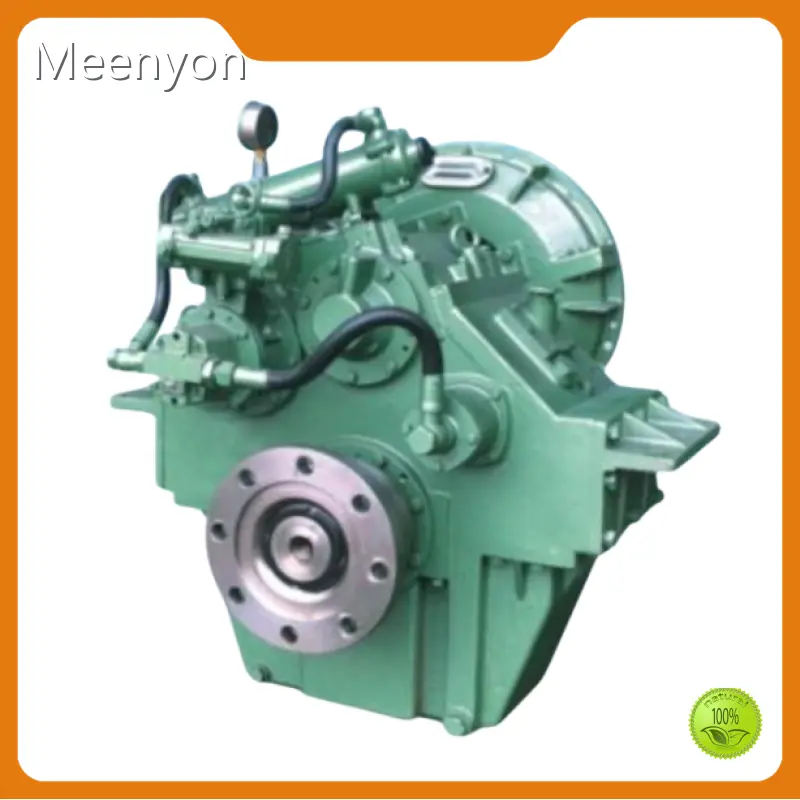

Product details of the large industrial gearboxes

Quick Detail

The practical design of Meenyon large industrial gearboxes caters the taste of customers. The product is reliable in all respects, including quality, performance, durability, etc. Meenyon has solidly done a good job in the construction of sales network.

Product Information

The large industrial gearboxes mainly promoted by Meenyon have been further improved in the past through the technical improvement, which is reflected in the following aspects.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

OPTIONS

● PTO

● Mechanical, pneumatic or electrical remote control

Specification

Item	Description	Model T300
01	Engine speed: 750-2300 rpm; max 750 hp at 2300 rpm
02	Ratio :1	4.73	4.95	5.51	6.03	6.65	7.04	7.54	8.02	8.47
03	Rate (hp/rpm)	0.326	0.326	0.326	0.326	0.326	0.326	0.296	0.296	0.268
04	Bell housing: #0, #1				Flywheel: 18”, 16”, 14”
05	Overall L×W×H: 772×980×1106 mm				Dry weight: 1120 kg
06	Centre distance: 355 mm
07	Recommend engine: KTA19-M600; TBD234V12 …
08	Rated propeller thrust: 70 Kn

Dimension

Model T300
C	355 mm
S	455 mm
F	665 mm
L	460 mm
R	460 mm

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.

Company Introduction

Meenyon is a large industrial gearboxes factory that manufactures and sells all kinds of large industrial gearboxes. The improvement of technical power has also promoted the development of Meenyon. In this prosperous society, the goal of Meenyon is to become a better company in the large industrial gearboxes field. Call now!
We supply our products of good quality and affordable price in long term. Please feel free to consult us!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
