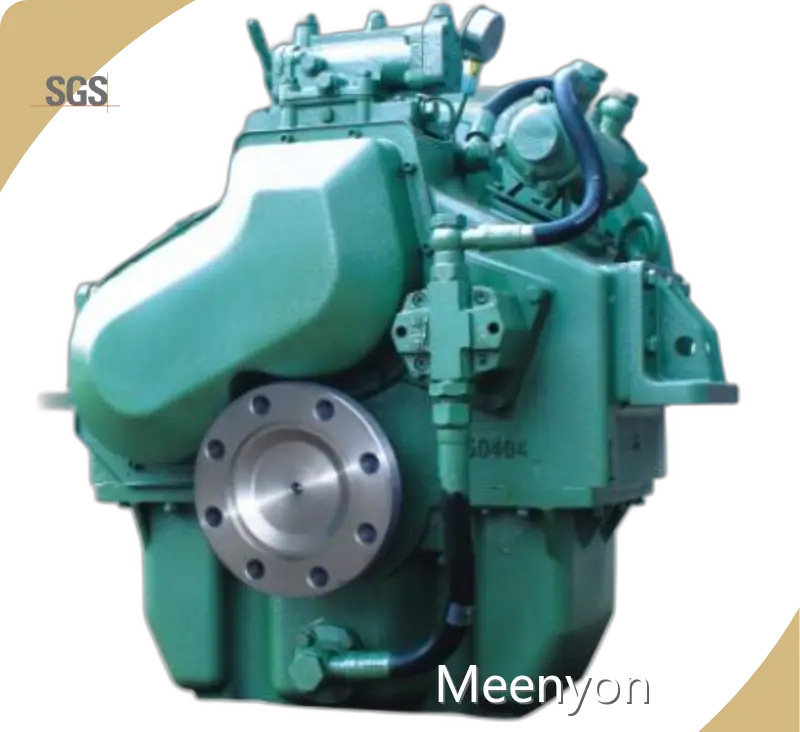

Product details of the heavy duty gearbox

Quick Detail

Meenyon heavy duty gearbox is designed by our independent designers who have been paying great attention to it. Meenyon branded product is known for their longer service life. Meenyon has set up an integrated sales network in domestic market.

Product Introduction

In order to strengthen your understanding of heavy duty gearbox, Meenyon will show you the specific details of heavy duty gearbox in the following section.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

Specification

Item	Description	Model 135A
01	Engine speed: 750-20000 rpm; max 266 hp at 2000 rpm.
02	Ratio :1	2.03	2.59	3.04	3.62	4.11	4.65	5.06	5.47	5.81
03	Rate (hp/rpm)	0.133	0.133	0.133	0.133	0.133	0.125	0.188	0.103	0.094
04	Bell housing: #1, #2				Flywheel: SAE 14”,11.5”
05	Overall L×W×H:578×792×830mm				Dry weight: 470kg
06	Centre distance: 225mm ;
07	Recommend engine:NT-855-M240; CAT3406 …
08	Rated propeller thrust: 29kN

Dimension

Model 135A
C	225mm
S	246mm
F	604mm
L	320mm
R	320mm

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.

Company Information

Meenyon is a comprehensive enterprise, specifically located in We are dedicated to the import, export, R&D, processing and sales of Marine Gearbox,Marine Gearbox Parts,Marine Power System Solution,Marine Hydraulic Clutch. To pay back to society with the first-class products and service, we will, as always, adhere to the corporate strategy of 'science and technology, talent support, brand driving, and cultural development', the spirit of 'profession, innovation, integrity and responsibility' and the tenet of 'serving customers and benefiting the society'. Meenyon has introduced an advanced management model and excellent management philosophy, and built a strong and professional management team. With many years of practical experience, Meenyon is capable of providing comprehensive and efficient one-stop solutions.
The products we produced are excellent in quality and cost-effective. If in need, please contact us!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
