MEENYON - Customized Marine Gearboxes Manufacturer & Supplier for 40 Years

Bulk Marine Gear Box Supplier

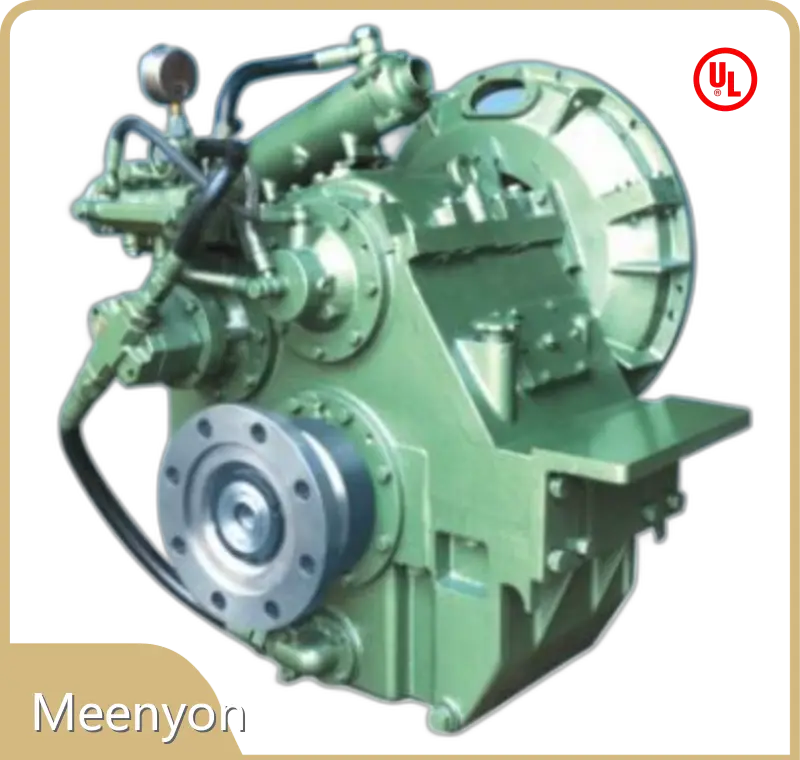

Product details of the marine gear box

Quick Detail

Meenyon marine gear box is manufactured by a team of qualified experts who work with determination. marine gear box is well sold throughout the country and is well received by users. Meenyon's marine gear box can be used in multiple industries and fields. Meenyon has won customers' trust and support with excellent sales, perfect design, excellent production and sincere services.

Product Information

Next, the details of marine gear box are shown for you.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

Specification

Item	Description		Model J300
01	Engine speed: 750-2500 rpm; max 938 hp at 2500 rpm
02	Ratio :1	0.04	2.54	3.00	3.47	3.95
03	Rate (hp/rpm)	0.375	0.375	0.375	0.375	0.344
04	Bell housing: #0, #1			Flywheel: SAE 18”,16”,14”
05	Overall L×W×H: 786×930×880 mm			Dry weight: 740kg
06	Centre distance: 264mm ;
07	Recommend engine:KTA19-M600, CAT3412T, TBD234V12…
08	Rated propeller thrust: 60kN

Dimension

Model J300
C	264mm
S	270mm
F	648mm
L	435mm
R	435mm

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.
