Best Pricemarine Gearbox Supplier

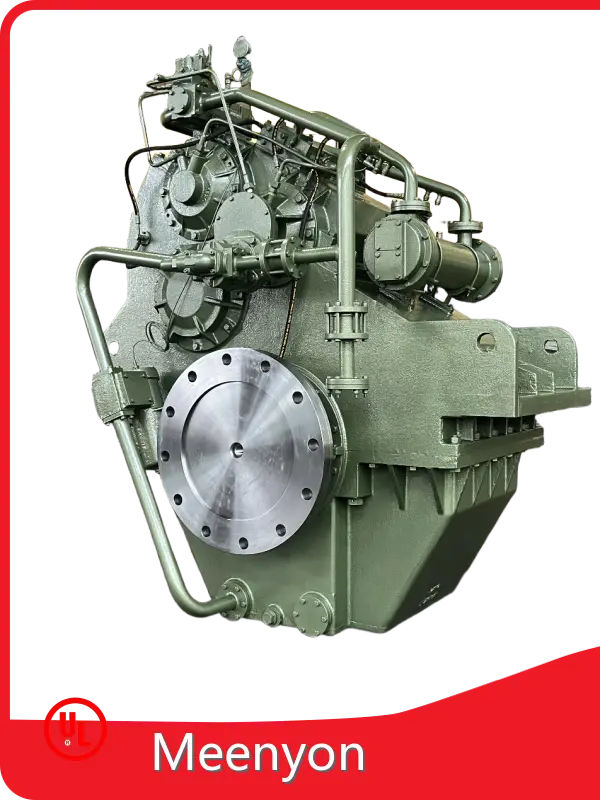

Product details of the marine gearbox supplier
Product Description
One of Meenyon’s greatest strengths and benefits offered to our clients is the ability to develop unique design. Strict quality inspections are carried out before delivery to increase its qualification ratio. This product is widely used in various fields, with broad application prospects and huge market potential.
Features
● Durable structure of driving gear bearing
● Tapered roller thrust bearing for output shaft thrust
● Hydraulic clutches of forward and reverse
● Quality Control System ISO/IATF16949:2016
● Quiet operation with precise gearing.
● Compact design
● Go Home function (emergency bolt application)
Options
● Mechanical, pneumatic or electrical remote control
Specification
|
Item |
Description |
|
Model 27000 |
|||||||||
|
01 |
Engine speed: 500-1400 rpm; max 3849 hp at 1400 rpm |
|||||||||||
|
02 |
Reduction Ratio :1 |
1.54 | 2.03 | 2.58 | 3.09 | 3.48 | 3.95 | 4.47 | ||||
|
03 |
Rate (hp/rpm) |
2.749 | 2.749 | 2.749 | 2.749 | 2.749 | 2.749 | 2.347 | ||||
|
04 |
Bell housing: NO |
|
Flywheel: main engine |
|||||||||
|
05 |
Overall L×W×H: 1613×1670×1650 mm |
|
Dry weight: 4700 kg |
|||||||||
|
06 |
Centre distance: 490 mm |
|||||||||||
|
07 |
Recommend engine: |
|||||||||||
|
08 |
Rated propeller thrust: 270 KN |
|||||||||||
Dimension
|
Model 2700 |
|
|
C |
490 mm |
|
S |
mm |
|
F |
mm |
|
L |
mm |
|
R |
mm |
