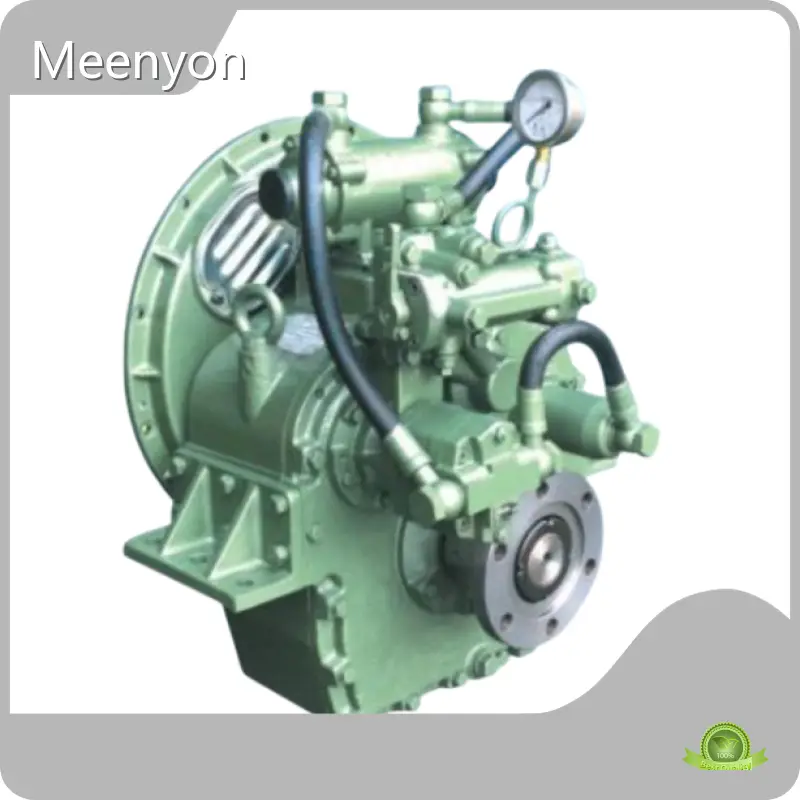

Product details of the high rpm gearbox

Product Information

The superior raw materials of Meenyon high rpm gearbox are sourced from top-grade suppliers. This product is widely known for its high quality and reliability. Meenyon is synonymous with demands of the quality-oriented and price-conscious high rpm gearbox.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

OPTIONS

● Mechanical or electrical remote control

Specification

Item	Description			Model Q501
01	Engine speed: 1000-2300 rpm; max 1242 hp at 2300 rpm
02	Reduction Ratio :1	1.03	1.46		1.56	1.88	2.00	2.45
03	Rate (hp/rpm)	0.540	0.540		0.540	0.540	0.540	0.510
04	Bell housing: SAE #0, #1					Flywheel: 14”, 16”,18”
05	Overall L×W×H: 742×856×950 mm					Dry weight: 650 kg
06	Centre distance: 235 mm
07	Recommend engine: KTA38-M940, CAT3508B, TBD234V16 …
08	Rated propeller thrust: 55 KN

Dimension

Model Q501
C	235 mm
S
F
L
R

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.
