Best High Speed Gearbox Manufacturers Price List

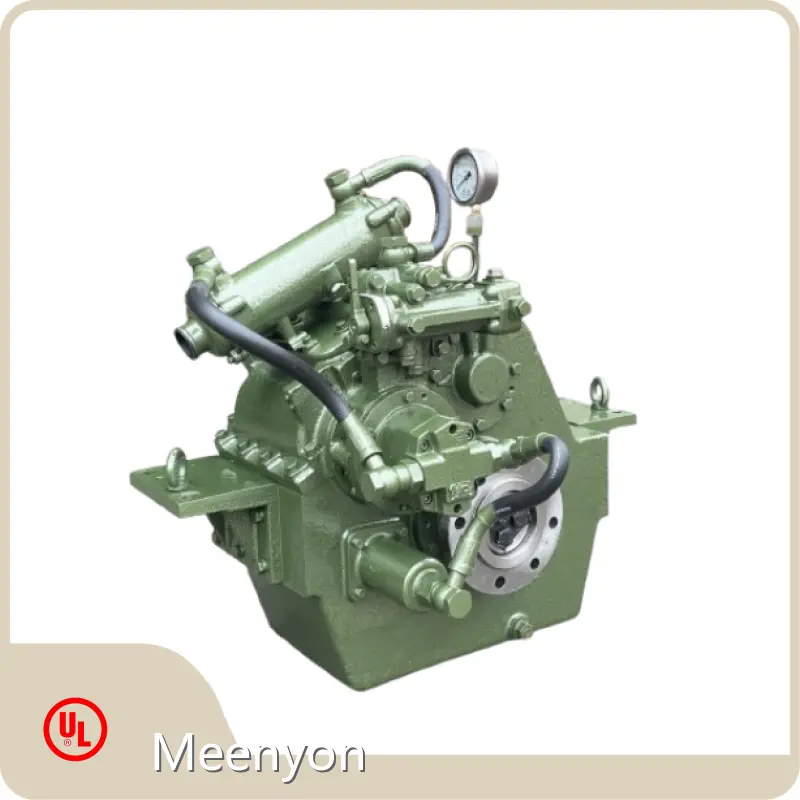

Product details of the high speed gearbox manufacturers

Quick Detail

The production environment of Meenyon high speed gearbox manufacturers meets the estimated standards. The product has been certified to a number of recognized standards, such as ISO quality standards. Meenyon's high speed gearbox manufacturers is of excellent quality and is widely used in the industry. The sales of the high speed gearbox manufacturers also contributes to the quality of the service.

Product Introduction

Compared with products in the same category, Meenyon's high speed gearbox manufacturers has the following outstanding features.

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● 5° down angle on output shaft

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

OPTIONS

● Mechanical or electrical remote control

Specification

Item	Description	Model A302 7°
01	Engine speed: 1000-2300 rpm; max 575 hp at 2300 rpm
02	Reduction Ratio :1	1.50	1.96	2.57	2.95
03	Rate (hp/rpm)	0.250	0.250	0.250	0.235
04	Bell housing: SAE #1,				Flywheel: 14”
05	Overall L×W×H: 560×585×764 mm				Dry weight: 365 kg
06	Centre distance: 267.5 mm; 7° down angle on output shaft
07	Recommend engine:
08	Rated propeller thrust: 40 KN

Dimension

Model A302 7°
C	267.5 mm
S
F
L
R
A	7°

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.

Company Advantages

Meenyon is a company that mainly sells Marine Gearbox,Marine Gearbox Parts,Marine Power System Solution,Marine Hydraulic Clutch. Meenyon integrates facilities, capital, technology, personnel, and other advantages, and strives to offer special and good services. We are looking forward to developing a better future with you.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
