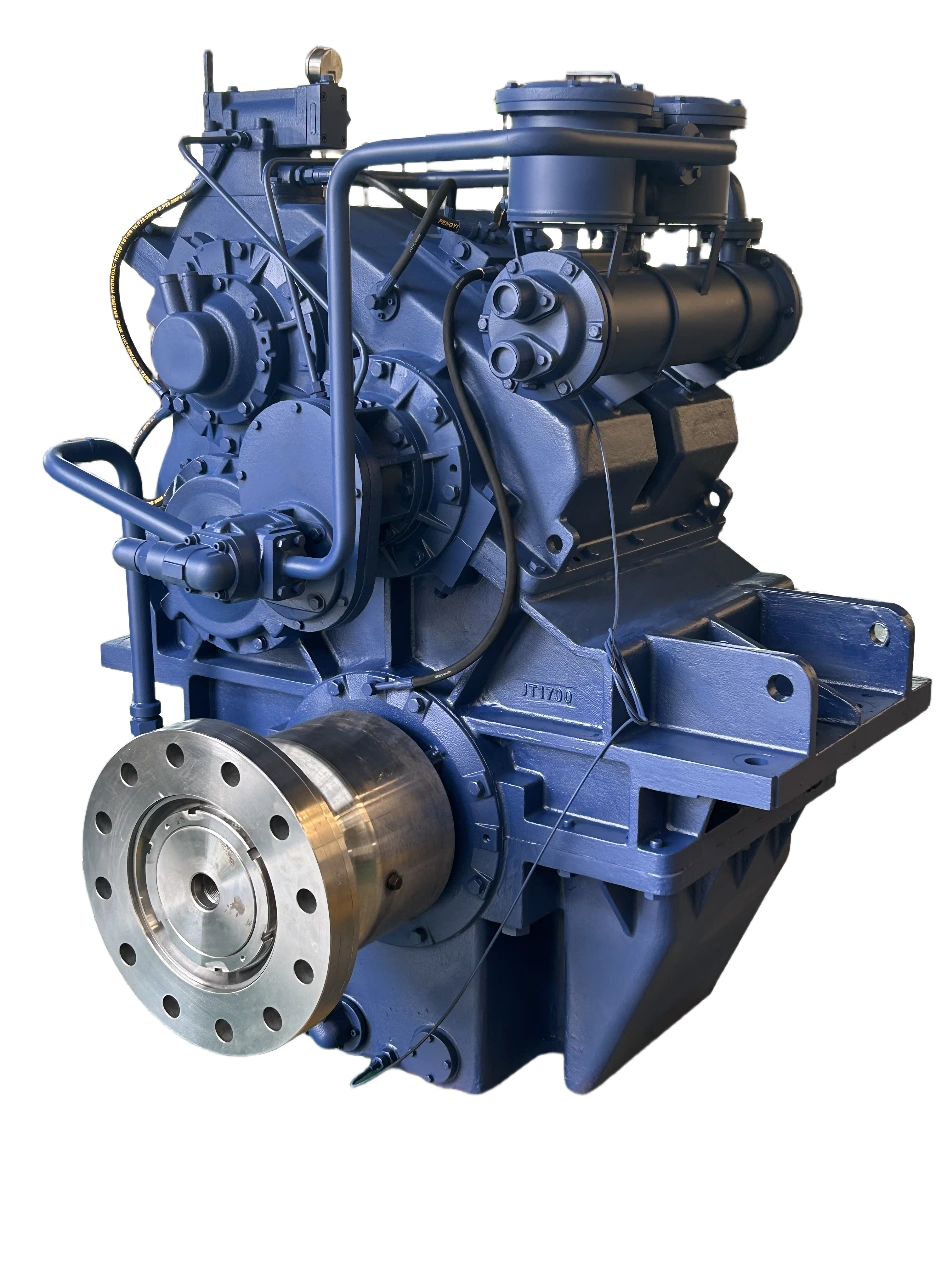

MEDIUM AND HEAVY DUTY MARINE GEARBOX MODEL D1600

Apply to:

Large ocean fishing boats, transport ships, passenger ships, container ships, tugs and all kinds of engineering ships.

Standard equipment:

● Mechanical control valve

● Oil cooler

● Companion flange / Reamer bolts

● Bell housing (selection)

● Flexible flywheel coupling (selection)

Inquiry

Write a Review

Features

● Durable structure of driving gear bearing

● Tapered roller thrust bearing for output shaft thrust

● Hydraulic clutches of forward and reverse

● Quality Control System ISO/IATF16949:2016

● Quiet operation with precise gearing.

● Compact design

● Go Home function (emergency bolt application)

Options

● Mechanical, pneumatic or electrical remote control

Specification

Item	Description			Model D1600
01	Engine speed: 500-1650 rpm; max 2680 hp at 1650 rpm
02	Reduction Ratio :1	2.97	3.50		3.96	4.48	4.95	5.25	5.58	5.49
03	Rate (hp/rpm)	1.625	1.625		1.625	1.625	1.625	1.625	1.500	1.400
04	Bell housing: NO						Flywheel: main engine
05	Overall L×W×H: 1291×1620×1590 mm						Dry weight: 4000 kg
06	Centre distance: 520 mm
07	Recommend engine:
08	Rated propeller thrust: 200 KN

Dimension

Model D1600
C	520 mm
S	mm
F	mm
L	mm
R	mm

faq

What Is A Marine Gearbox Used For?

A marine gearbox has the functions of speed reduction, forward and reverse, engaging and disengaging as well as bearing propeller thrust. It is used to transfer power from engine to propeller and to form a ship’s marine power unit.

What Are The Main Components Of A Marine Gearbox?

The main components of a marine gearbox include the input shaft, intermediate shaft, output shaft, gears, bearings, clutches and housing.
